Description

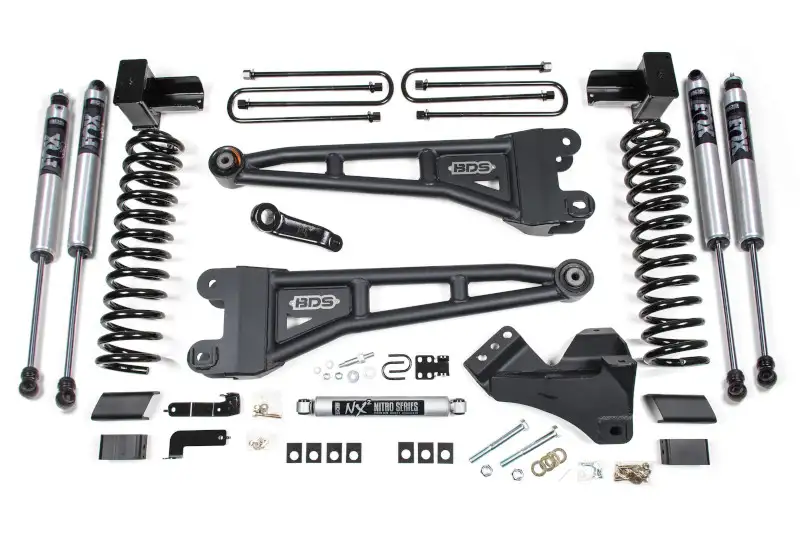

F-250/F-350 4WD Gas BDS 5″ Radius Arm Lift Kit Features:
- Easy, 100% Bolt-on installation
- Pro-Ride dual rate coil springs provide a remarkable ride
- Delivers a smooth ride over any terrain
- Heavy-duty radius arms correct caster
- Track bar relocation bracket and pitman arm
- Fabricated steel blocks for a leveled stance
- FOX 2.0 Performance Series shocks with vehicle-specific valving
- Delivers maximum off-road performance
- Accommodates up to a 37″ tire
High-Quality Radius Arm Lift Kit by BDS Suspension
Elevate your 2023-2026 Ford Super Duty gas truck to new heights of performance and style with the BDS Suspension 5″ Radius Arm Lift Kit featuring FOX 2.0 Performance Series shocks. Engineered for an easy, 100% bolt-on installation, this kit transforms your truck into a formidable off-road machine while maintaining a remarkable on-road ride. At the core of this kit are the Pro-Ride dual rate coil springs specifically designed for gas applications. These springs not only provide the perfect lift height but also ensure a smooth and predictable ride across diverse terrains, making every journey a pleasure. The heavy-duty tubular radius arms replace the factory stamped steel arms, offering caster adjustment and an OE-style rubber bushing at the frame mount for silent, maintenance-free operation. Steering correction is a key focus of this kit, achieved through a forged drop pitman arm and a track bar relocation bracket. This combination minimizes the steering angle, optimizing geometry and keeping the front axle precisely centered through suspension travel. The result is responsive and controlled steering that enhances both on-road and off-road driving experiences.
High-Quality Construction & Design
Designed for durability and longevity, the lift kit components include precision-tuned nitrogen-charged shocks, brake line brackets, sway bar relocation, and more. Whether you’re conquering rugged trails or cruising city streets, the BDS Suspension 5″ Radius Arm Lift Kit with FOX 2.0 Performance Series shocks delivers an unmatched blend of style, capability, and comfort for your Super Duty. In the rear, a high-strength fabricated lift block, longer u-bolts, and brake line brackets provide a leveled stance and accommodate larger tires, up to an impressive 37″. Complementing this setup are the FOX 2.0 Performance Series shocks with vehicle-specific valving, ensuring maximum off-road performance. The shocks feature a 2-inch impact extruded aluminum body, internal floating piston (IFP) monotube design, CNC machined 6061-T6 aluminum mounting ends, and a race-developed high-flow piston for optimal performance in any situation. Vehicle Fitment: 2023, 2024, 2025, 2026 Ford F-250/F-350 Super Duty 4WD – Gas Important Notes:
- This kit is not compatible with trucks equipped with radius arm mounted ride height sensors.
- Ford recommends the replacement of the pitman arm nut after each time it has been removed.
- Use a small pitman arm puller to remove the drag link joint and steering stabilizer taper.
- If your truck is equipped with a 2-piece rear driveshaft, a Carrier Bearing Drop Kit may be required: BDS123402.
- Due to the taller factory ride height, Tremor models will not net full advertised lift height. Final ride height will be the same as standard models.
- Larger tires on stock wheel are not recommended due to interference with brake line, radius arm and sway bar. Use recommended specs listed in wheel and tire fitment section.
- Minor trimming may be necessary for clearance of 37×12.50 tires on certain wheel setups.
- Installation requires a torque wrench capable of 406 ft-lbs.
- Trucks without top mounted overload springs will require (4) UBT4028.
Recommended Wheels and Tires:
- 37 x 12.5 with 17 x 9 and 5 in. Backspace
- 37 x 12.5 with 18 x 9 and 5 in. Backspace
- 37 x 12.5 with 20 x 9 and 5 in. Backspace
