Description

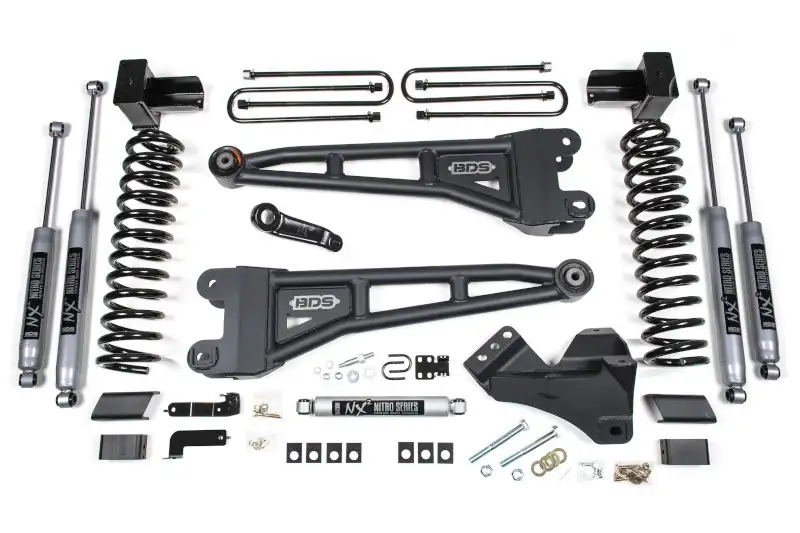

F-250/F-350 4WD Gas BDS 5″ Radius Arm Lift Kit Features:

• Easy, 100% Bolt-on installation
• Pro-Ride dual rate coil springs provide a remarkable ride
• Delivers a smooth ride over any terrain
• Heavy-duty radius arms correct caster
• Track bar relocation bracket and pitman arm
• Fabricated rear block for a leveled stance
• Standard NX2 Nitro shocks with vehicle-specific valving
• Delivers maximum off-road performance
• Accommodates up to a 37″ tire

Radius Arm Lift Kit with NX2 Nitro Series Shocks

Upgrade your 2023-2026 Ford Super Duty gas truck with the BDS Suspension 5″ Radius Arm Lift Kit featuring NX2 Nitro Series shocks for an unparalleled combination of style and performance. This easy, 100% bolt-on installation kit is meticulously designed to enhance your truck’s stance, capability, and ride quality, providing clearance for up to 37″ tires for those who demand both style and substance. At the forefront of this kit are the gas-specific Pro-Ride dual rate coil springs that deliver a smooth and predictable ride across various terrains, ensuring your journey is as enjoyable as it is capable. The heavy-duty tubular radius arms replace the factory stamped steel arms, offering caster adjustment for a wide range of lift heights. The OE-style rubber bushing at the frame mount ensures smooth, quiet, and service-free operation, setting a new standard for durability. Steering correction is seamlessly integrated into the kit with a forged drop pitman arm and a track bar relocation bracket, minimizing the steering angle for optimized geometry. This, paired with a fabricated rear block for a leveled stance, sway bar relocation, brake line brackets, and precision-tuned nitrogen-charged NX2 Nitro Series shocks, guarantees a ride that is responsive and controlled, whether navigating city streets or conquering off-road trails.

High-Quality Construction & Design

BDS manufactured their radius arm lift kit using only premium materials and the latest design techniques to ensure unmatched strength and durability on you ride. The rear lift option includes a high-strength fabricated lift block, longer u-bolts, brake line brackets, and the option for the standard NX2 Nitro Series shocks with vehicle-specific valving. These shocks boast a nitrogen-charged, twin-tube design with 10-stage velocity-sensitive valving, dual-welded ends for increased strength, a 1-3/8-inch high-flow piston, self-lubricating seals, and a silver powder coat finish for long-lasting durability and maximum off-road performance. With the BDS Suspension 5″ Radius Arm Lift Kit and NX2 Nitro Series shocks, your Super Duty will not only stand out in terms of appearance but will also deliver an unparalleled driving experience that combines comfort, capability, and rugged style.Vehicle Fitment: 2023-2026 Ford F-250/F-350 Super Duty 4WD – Gas Important Notes:

• This kit is not compatible with trucks equipped with radius arm mounted ride height sensors.
• Ford recommends the replacement of the pitman arm nut after each time it has been removed.
• Use a small pitman arm puller to remove the drag link joint and steering stabilizer taper.
• If your truck is equipped with a 2-piece rear driveshaft, a Carrier Bearing Drop Kit may be required: BDS123402.
• Due to the taller factory ride height, Tremor models will not net full advertised lift height. Final ride height will be the same as standard models.
• Larger tires on stock wheel are not recommended due to interference with brake line, radius arm and sway bar. Use recommended specs listed in wheel and tire fitment section.
• Minor trimming may be necessary for clearance of 37×12.50 tires on certain wheel setups.
• Installation requires a torque wrench capable of 406 ft-lbs.
• Trucks without top mounted overload springs will require (4) UBT4028.

Recommended Wheels and Tires:

• 37 x 12.5 with 17 x 9 and 5 in. Backspace
• 37 x 12.5 with 18 x 9 and 5 in. Backspace
• 37 x 12.5 with 20 x 9 and 5 in. Backspace
