Description

F250/F350 BDS Lift Kit w/ Radius Arm Features:

• Heavy-duty system while maximizing ground clearance
• FOX 2.5 Performance Elite Front and Rear Shocks
• Pro-Ride dual rate coil springs for a smooth ride
• Heavy-duty radius arms correct caster and alignment
• Rear block kit provides a leveled stance
• Vehicle-specific valving for better control
• Track bar bracket and pitman arm
• Improves ride smoothness, and comfort

Heavy-Duty Radius Arm Lift System for Super Dutys

BDS is a powerhouse in the aftermarket suspension world, so what better way to upgrade your 2023-2026 Ford Super Duty than with the BDS 5″ Radius Arm Lift Kit with FOX 2.5 Coilover Shocks? This premium lift system includes everything you need to acheive a more commanding view of the road, improved off-road capabilities, and more comfort without sacrificing ride quality. At the core of this kit lies a pair of heavy-duty tubular radius arms which correct caster and maximize ground clearance. The arms mount in place of the factory location and offer caster adjustment to ensure proper alignment and suspension geometry. Both arms come equipped with an OE-style rubber bushing at the frame mount for smooth, quiet, and service-free operation. Additionally, you’ll receive a track bar relocation bracket and pitman arm to maintain proper steering angles. This means you’ll experience better handling and control compared to other lift systems that don’t accommodate for the increase in ride height. Better yet, this kit permits you to slap on up to 37-Inch tires to help you further transform your ride into an off-road ready beast.

High-Quality Construction with FOX 2.5 Performance Elite Shocks

BDS manufactured their 5″ Radius Arm Lift Kit using only premium components and upgrades to ensure unmatched strength and reliability each time you get behind the wheel. Aside from the increase in ride height and ride quality you’ll achieve with this lift system, BDS also includes a complete set of front and rear FOX 2.5 Performance Elite Shocks. These upgraded FOX shocks greatly improve off-road capabilities with their 2.5″ impact extruded shock bodies and massive 7/8″ hard chrome plated heat-treated alloy steel shaft. The hardcore construction of these shocks makes them built for abuse, giving you more confidence when you’re driving conditions become extreme. These shocks also come equipped with DSC adjuster technology which adds remarkable versatility and precise tuning with a simple twist of the knobs. 10 levels of low-speed and 12 levels of high-speed compression adjustment allow you to dial in your suspension performance for varying terrain, making your Super Duty capable of so much more. Best of all, these components bolt directly in conjunction with your truck’s suspension setup to make for a simple process you can complete in your garage.Vehicle Fitment: 2023, 2024, 2025, 2026 Ford F250/F350 SuperDuty 4WD

Recommended Wheels and Tires

• 37 x 12.5 with 17 x 9 and 5 in. Backspace
• 37 x 12.5 with 18 x 9 and 5 in. Backspace
• 37 x 12.5 with 20 x 9 and 5 in. Backspace
• Minor trimming may be necessary for clearance of 37×12.50 tires on certain wheel setups.

Specs:

• Front Lift: Coil Spring
• Rear Lift: Block kit
• Shocks Included: Yes
• Front Lift Height: 5 inch
• Rear Lift Height: 4 inch

FOX 2.5 Performance Elite Series Features:

• Increased off-road capabilities
• Easily adjust your shock for terrain, load and speed
• 2.5-inch Impact extruded aluminum body
• Massive 7/8-inch hard chrome plated heat-treated alloy steel shaft
• External reservoir design separates shock oil from the high-pressure nitrogen
• Dual Speed Compression Adjuster comes standard
• Fully serviceable for a lifetime of use
• 1-year Manufacturer’s Warranty

Important Notes:

• This kit is not compatible with trucks equipped with radius arm mounted ride height sensors.
• Ford recommends the replacement of the pitman arm nut after each time it has been removed.
• Use a small pitman arm puller to remove the drag link joint and steering stabilizer taper.
• If your truck is equipped with a 2-piece rear driveshaft, a Carrier Bearing Drop Kit may be required: BDS123402.
• Due to the taller factory ride height, Tremor models will not net full advertised lift height. Final ride height will be the same as standard models.
• Larger tires on stock wheel are not recommended due to interference with brake line, radius arm and sway bar. Use recommended specs listed in wheel and tire fitment section.
• Minor trimming may be necessary for clearance of 37×12.50 tires on certain wheel setups.
• Installation requires a torque wrench capable of 406 ft-lbs.
• Trucks without top mounted overload springs will require (4) UBT4028.

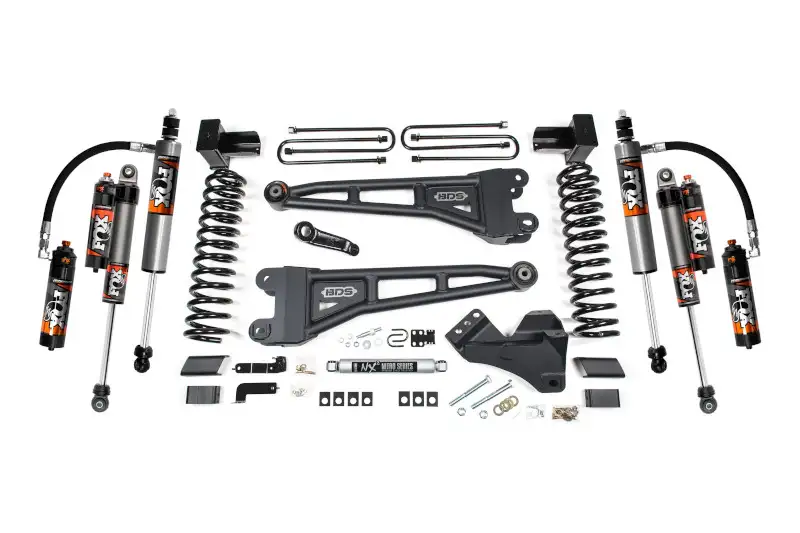

Kit Includes:

• Super Duty 4″ Front Box Kit (013414)
• Ford F250/350 4wd Radius Arm Kit, Pair (123263)
• Ford F250/F350 Gas 4″ Coil Spring Kit (033412)
• F250 5″ Rear Block Kit -3 Leaf Main (013516)
• Kit: Ford SD Front, 2.5 Truck PES, R/R, 2-3.5″ Lift, DSC (FOX88326097)
• Kit: Ford SD Rear, 2.5 Truck PES, P/B, 4-6″ Lift, DSC (FOX88326100)
