Description
F250/F350 ICON Stage 5 Coilover Conversion System Features:
- Bolt-in system fits in OE coil bucket location
- Adds a secondary front shock equipped with CDCV technolgoy
- Fabricated radius arms offer on vehicle caster adjustment
- Radius arms also increase strength and improve tire clearance
- Ride height adjustable coilovers provide 2.5-3″ of lift
- Experience a decrease in body roll
- Vehicle-specific valving provides superior ride quality and control
- Front and rear shocks equipped with CDC Valve Technology
- 10 Settings of compression damping adjustment
- Corrosion resistant CAD plated shock bodies with 7/8″ shafts
- Adjustable track bar ensures proper axle placement
- Dual steering stabilizer kit for smooth wheel control
- ICON engineered coil springs guaranteed against sagging or breakage
- Professional installation Recommended
ICON’s Stage 5 System Greatly Enhances Your Ride Performance
If you’re looking for a premium suspension solution that will lift your 2023 Ford Super Duty 2-3.5″ while drastically improving its overall ride quality and performance, look no further than the ICON Stage 5 Coilover Conversion System. The Stage 5 Coilover Conversion is the upgraded version of ICON’s Stage 4 Conversion kit, and features a secondary front shock system that complements the front coilovers. Included in this kit, you’ll receive a set of premium front coilovers, secondary front shocks, radius arms, rear shocks, dual stabilizer kit, track bar, and all of the necessary hardware to ensure your truck will be ready for any adventure you have in mind. The 2.5″ Remote Reservoir Coilover featured in this kit is based off ICON’s 2.5 VS Series shock line, meaning that features such as ICON engineered coil springs, FK Rod End bearings, and vehicle-specific valving come standard. The dual stabilizer kit and track bar work to enhance vehicle stability, ensuring you remain in control even when you’re driving conditions become extreme. You’ll also benefit from the increase in ground clearance which helps you navigate over larger off-road obstacles, and permits you to slap on larger tire/wheel combinations.
ICON CDC Valve Shock Technology
The hallmark feature of the ICON Stage 5 System is the complete shock package comes equipped with ICON’s exclusive Compression Damping Control Valves, offering a remarkable 10 settings of external compression damping adjustment. The front coilovers, front secondary, and rear shocks all come equipped with the CDC Valves,delivering superior performance in every situation. This innovative technology allows you to precisely dial in your suspension performance, giving you the power to customize your driving experience based on the terrain and your preferences. The Compression Damping Control Valves, or CDCV, play a crucial role in controlling fluid flow under compression, enabling you to achieve the perfect tune whether you’re navigating the urban streets, conquering rocky terrains with slow-crawling precision, or pushing the limits across the desert at full throttle.
ICON Fabricated Radius Arms
This particular version of ICON’s Stage 5 Suspension also comes equipped with fabricated steel radius arms which offer on-vehicle caster adjustment, helping optimize the alignment of your truck’s suspension which can ensure stable and predictable steering over any terrain. Incorrect caster settings can also lead to uneven tire wear, so these arms work to align the wheels properly so you can maintain the longevity of your tires. What’s more, these upgraded arms offer more strength over the factory arms, making you ready for just about any adventure you have in mind. Better yet, the arms further contribute to the improved handling characteristics of your truck, keeping your ride stable under most circumstances.
High-Quality Construction & Design
The ICON Stage 5 Suspension System was built with attention to detail, featuring components that are engineered to last even under demanding conditions. The ICON engineered coil springs equipped in the coilover assemblies are made out of 6061 aircraft grade aluminum, guaranteeing durability and reliability in the toughest terrains. Additionally, the shock bodies come complete with a CAD plating, 7/8″ diameter shafts, and FK rod end bearings ensure extended longevity and minimal deflection. The shocks even feature an external remote reservoir which contributes to faster heat dissipation to help keep operating temps low when you’re out pushing things to the limit. Better yet, these shocks are fully rebuildable and revalvable so you can enjoy an extended lifespan without a ton of hassles. With the ICON Stage 5 system, you’ll be confident in knowing you have one of the best suspension solution’s on the market.Vehicle Fitment: 2023 Ford F250/F350 Super Duty 4WD Diesel Vehicle Fitment:
- Springs Are Rated For Diesel Engines Only
- Shocks Are Fully Serviceable. Lift Heights Indicated Are For A Stock Equipped Vehicle.
- Removal Of The Coil Centering Cup In Factory Coil Bucket Required For Installation.
- Rare Cases Require A 2.6 Degree Alignment Cam On One Side Of Vehicle For Proper Caster Split.
- Trucks equipped with Tremor package with have front lift height of 1.5″ over stock
- Not compatible with models equipped with OnBoard Scales
- Not compatible with F-350 Cab & Chassis models
- ICON track bar bracket part # 64039 is also recommended to correct bump steer geometry
- Included rear shocks are compatible with 0-3″ of rear lift over stock

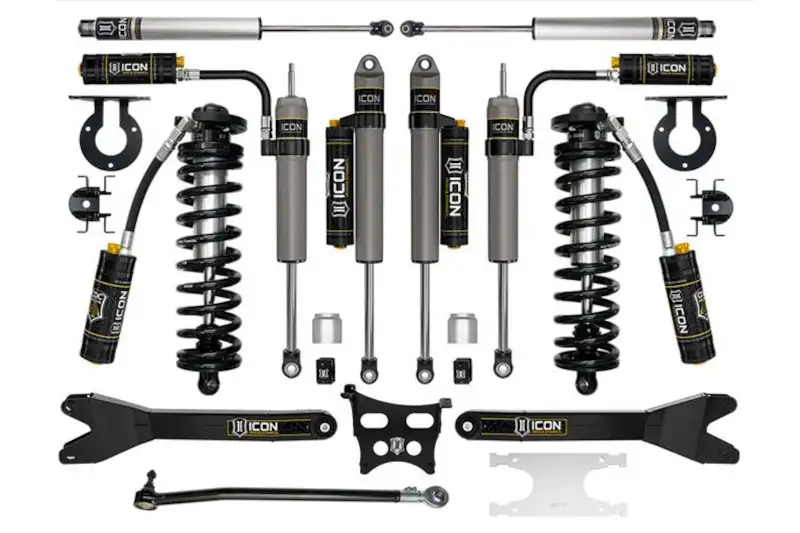

System Components:
- 05-23 FSD 2.5″ 2.5 VS RR CDCV BOLT IN CO CONVERSION KIT (61720C)
- 23 FSD DUAL STABILIZER KIT (65002)
- 99-23 FSD 4WD STABILIZER(DUAL OPPOSING) 2.0 VS IR (36511)
- 17-23 FSD ADJ TRACKBAR KIT (64038)
- 05-23 FSD 4WD 0-2.5″ FRONT 2.5 VS RR CDCV PAIR (67800CP)
- 2.5 RESI DOUBLER MOUNT 7.5″ KIT (611003)
- 99-23 FSD 0-3″ REAR 2.5 VS PB CDCV PAIR (37705CP)
- 23 FSD RADIUS ARM SYSTEM (64042)
