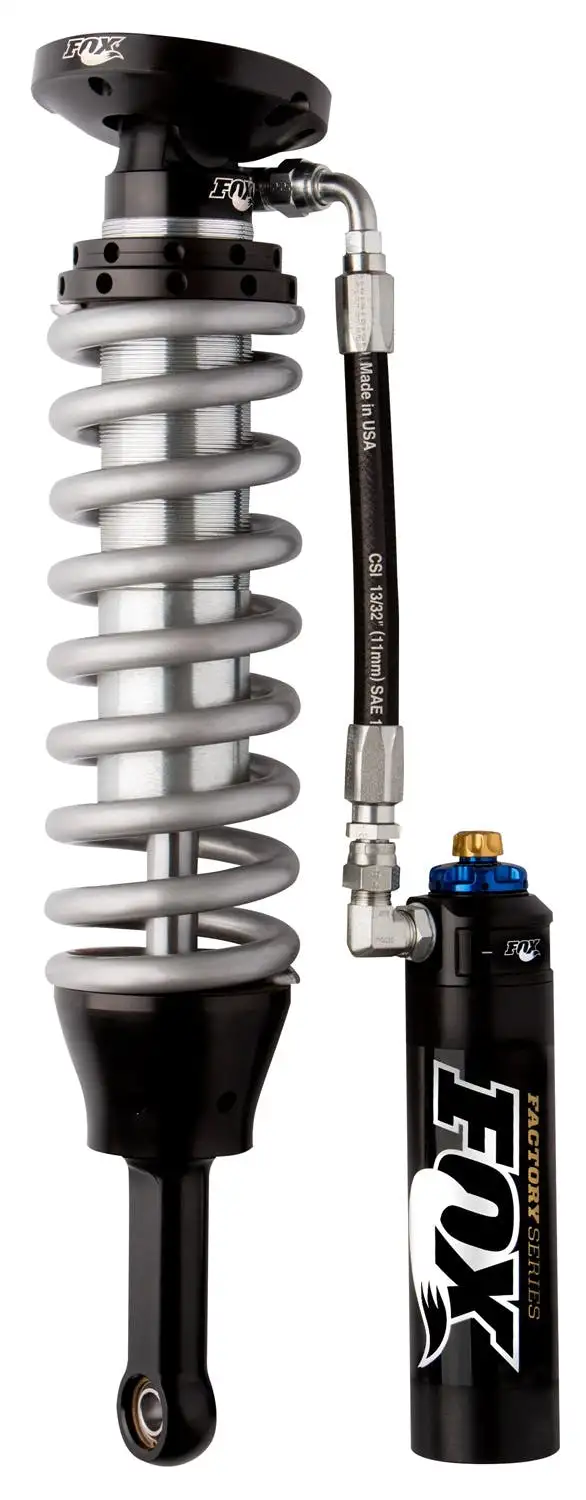

Fox Factory Inc 883-06-114 FACTORY RACE SERIES 2.5 COIL-OVER RESERVOIR SHOCK (PAIR)-ADJUSTABLE

Fox Factory Inc 883-06-114 FACTORY RACE SERIES 2.5 COIL-OVER RESERVOIR SHOCK (PAIR)-ADJUSTABLE

Original price was: $2,519.95.Current price is: $199.99.

SKU: BKTK-883-06-114 Category: Tag:

Description

Application specific valving to maximize performance.Developed from our off-road race shocks, FOX Factory Race Series combines race-proven technology with new, cutting-edge features to provide enhanced ride-quality and winning damping performance you can bolt onto your truck or SUV.

  • Performance Tuned For Vehicle Specific Application
  • Durable Zinc Plated Seamless Alloy Body
  • External Reservoir System Dissipates Heat Fast
  • Black Anodized CNC Machined Aluminum Components

Information:

Uncompromised performance through FOX s patented internal bypass technology delivers the feel of near-endless suspension travel. Exclusive internal bypass technology allows oil to flow around the piston at some points of the stroke – while creating humongous pressure at other points – supporting the vehicle like no other product can.Floating through terrain is accomplished with FOX s ride zone – combining a race-developed shock piston; internal bypass and Dual Speed Compression adjustment – allowing fine tuning for weight; terrain and speed.Dominate any terrain with the brute strength of 3-and 2.5-in. aluminum bodies; cactus cooler reservoirs and 7/8in. shafts with redundant seals; all proven in the harshest of environments under the toughest of conditions.

Application Summary:

Year Make/Model
2014-2020 Ford F-150
Attributes
Adjuster Type DSC – Dual Speed Compression
Body Material Steel
Bottom Mount Eyelet
Bottom Mount (P/N) 213-63-008
Collapsed Length 22.850 in.
Collapsed Length (in.) 22.850
Color Steel
Country of Origin (Primary) US
Emission Code Legal US
Extended Length 28.440 in.
Extended Length (in.) 28.440 in.
FOX CATALOG TRUCK
Harmonized Tariff Code (Schedule B) 8708800050
Hazardous Material Code N
Life Cycle Status Code Discontinued
NAFTA Preference Criterion Code B
Reservoir Type Remote
SDR Required Flag N
Series Factory Race
Shock Stroke 5.590 in.
Size 2.5 in.
Top Mount TM
Top Mount (P/N) TOP
Type Coil-Over Shock
Warranty Time 12
GTIN 00788000423912
