Description

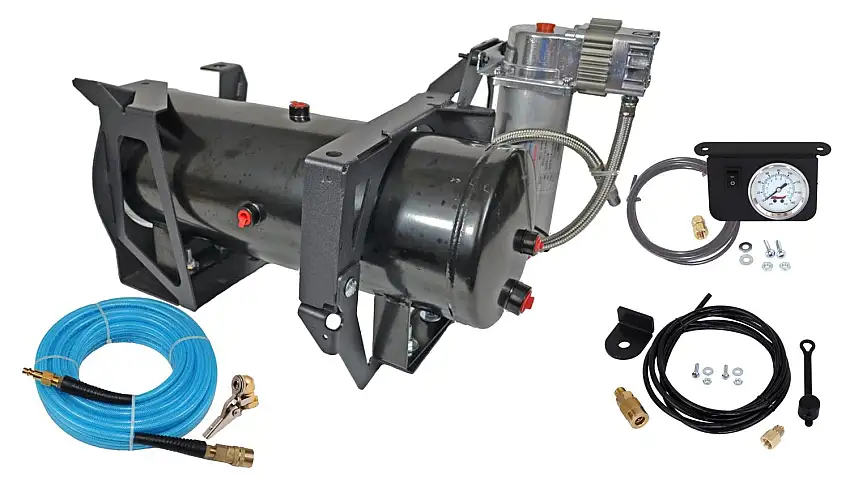

Onboard Air System; Includes150/200 PSI Air Compressor PN[6450RC]/ 3.0 Gallon Air Tank PN[6350RT];THE GMHD-OBA includes a 100% bolt-on onboard air system with direct fit vehicle specific mounting brackerts. No cutting, welding or drilling is required. Kit includes a model 6450RC 150 PSI waterproof high outp[ut air compressor, powder coated steel 3-gallon air tank and remote mount quick connect tire inflator with storage bag. Kit includes a 160 PSI panel mounted gauge and locking air chuck with digital pressure gauge and pressure release. System comes complete with all necessary air line, wiring and hardware for a professional looking installation.
- Model 6450RC Air Compressor
- Model 6350RT Air Tank
- Air Compressor Max PSI 150 / 200
- Air Tank Capacity 3 gal
Application Summary:
|
|
| Year |
Make/Model |
| 2007-2019 |
Chevrolet Silverado 2500 HD |
| 2007-2019 |
Chevrolet Silverado 3500 HD |
| 2007-2019 |
GMC Sierra 2500 HD |
| 2007-2019 |
GMC Sierra 3500 HD |
|
|
| Attributes |
| Attribute 1 |
Model-specific US Made brackets |
| Attribute 2 |
3.0 gallon US Made air tank with six ports (1 x 3/8in. NPT & 5 x 1/4in.), all steel construction, manufactured to SAE J10 and FMVSS 121 standards. Made in the USA. |
| Attribute 3 |
All necessary fittings and mounting hardware included |
| Attribute 4 |
Direct bolt-on, No drilling or cutting |
| Attribute 5 |
Includes 160 PSI panel mount gauge with ON/OFF rocker switch |
| Country of Origin (Primary) |
CN |
| Emission Code |
Legal US |
| Estimated Install Time (Hour) |
4-10 Hours |
| Harmonized Tariff Code (Schedule B) |
8414801685 |
| Hazardous Material Code |
N |
| Life Cycle Status Code |
Available to Order |
| NAFTA Preference Criterion Code |
B |
| SDR Required Flag |
N |
| Warranty Time |
12 |
| GTIN |
00819147011820 |
