Description

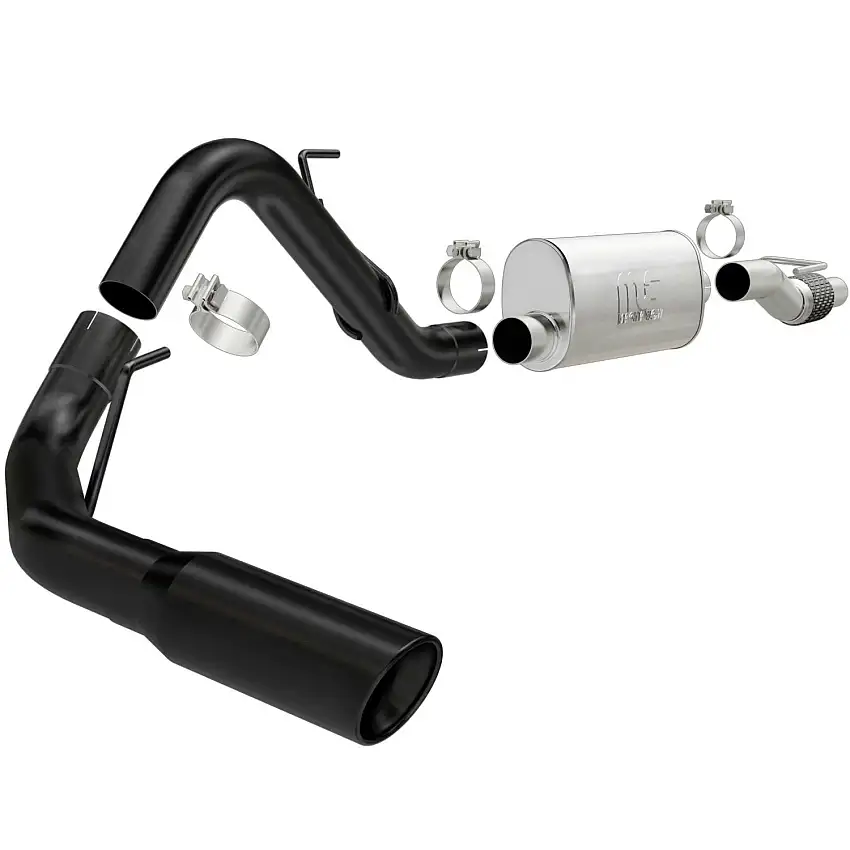

Magnaflow Street Series Black Cat-Back SystemThe MagnaFlow 2011-2014 Ford F-150 Street Series Cat-Back Performance Exhaust System brings out the personality of your 3.5L 2011-2014 Ford F-150 with our signature resonant, powerful engine tone and dyno-proven performance. Thanks to its fast-flowing, mandrel bent 3in. main piping and 1 Straight-Through mufflers ending in a Single Passenger Side Rear exit with 4in. Black Coated Welded-On Double Wall Angle Cut Rolled Edge tips, this Ford F-150 exhaust kit has the performance chops to match its sporty sound and appearance. Upgrade your ride to the next level with an exhaust that has the pipes to put other Ford F-150’s to shame. With this system your vehicle will be producing Moderate exterior and Mild interior sound levels while leaving other cars and trucks feeling envious at every stoplight. Exhaust kit 15364 features a cat-back layout that replaces your ride’s stock exhaust components from near the catalytic converter on back. Extensive 3D scanning during development has resulted in a direct-fit design that you can easily install yourself. 15364 is produced using CNC precision robotic manufacturing techniques and is backed by MagnaFlow’s 1-year limited finish warranty and limited lifetime construction warranty.
- Dyno-proven performance
- Durable corrosion-resistant stainless steel construction
- CNC precision robotic manufacturing techniques
Information:
Need further assistance? Call 1-800-990-0905.
Application Summary:
| Year | Make/Model |
|---|---|
| 2011-2014 | Ford F-150 |
| Attributes | |
| Anticipated Ship Out Time | Approximately 1-2 Days |
| ASIN | B00OZJ5G7Y |
| Attachment Style | Clamp-On |
| Attachment Type | Clamp-On |
| Catalytic Converter Included | No |
| Clamping Type | Round Band |
| Clamps Included | Yes |
| Color/Finish | Black Coated |
| Components | Band Clamp=3 |
| Country of Origin (Primary) | US |
| Exhaust Inlet Connection Type | Clamp-On |
| Exhaust Pipe Material | Stainless |
| Exhaust Tip Diameter | 4 |
| Exhaust Tip Finish | Black Coated |
| Exhaust Tip Material | Stainless Steel |
| Exhaust Tip Quantity | 1 |
| Exhaust Type | Single |
| Exit Location | Single Passenger Side Rear |
| Exit Position | Single Passenger Side Rear |
| Exit Quantity | Single |
| Exit Style | Single Passenger Side Rear |
| Finish | Black Coated |
| Gasket Or Seal Included | No |
| Hangers Included | Yes |
| Harmonized Tariff Code (Schedule B) | 8708925000 |
| Hazardous Material Code | N |
| Inlet Connection Type | Clamp-On |
| Inlet Inside Diameter | 3.000 in. |
| Inlet Inside Diameter (in.) | 3 |
| Inlet Size (in.) | 3 |
| Inlet Type | Clamp-On |
| Life Cycle Status Code | Available to Order |
| Main Piping Diameter | 3.000 in. |
| Main Piping Diameter (in.) | 3 |
| Material | Stainless |
| Mounting Bracket Included | No |
| Muffler Body Diameter | 5.000 in. x 8.000 in. |
| Muffler Body Diameter (in.) | 5 x 8 |
| Muffler Body Finish | Polished |
| Muffler Body Length | 18.000 in., 18 |
| Muffler Body Length (in.) | 18 |
| Muffler Body Material | Stainless Steel, Stainless Steel |
| Muffler Body Shape | Oval |
| Muffler Body Width | 8.000 in. |
| Muffler Body Width (in.) | 8.000 |
| Muffler Configuration | Center/Offset |
| Muffler Count | 1 |
| Muffler Finish | Polished |
| Muffler inlet Diameter | 3.000 in. |
| Muffler Inlet Diameter (in.) | 3.000 |
| Muffler Material | Stainless Steel |
| Muffler Outlet Diameter | 3.000 in. |
| Muffler Outlet Diameter (in.) | 3.000 |
| Muffler Overall Length | 23.750 in. |
| Muffler Overall Length (in.) | 23.750 in. |
| Muffler Quantity | 1, 1 |
| Muffler Type | Straight-Through, Straight-Through |
| NAFTA Preference Criterion Code | B |
| Outlet Outside Diameter | 3.000 in. |
| Outlet Outside Diameter (in.) | 3 |
| Outlet Size (in.) | 3 |
| Oversize Shipping | 888563008998 |
| Pipe Material | Stainless Steel, Stainless Steel |
| Recommended Use | Performance |
| SDR Required Flag | N |
| Series | Street, Street |
| Sound Level | Moderate |
| Subtitle | Cat-Back |
| Subtitles | Cat-Back |
| System Type | Cat Back |
| Tail Pipe Diameter | 3.000 in. |
| Tip Diameter | 4.000 in. |
| Tip Diameter (in.) | 4 |
| Tip Finish | Black Coated |
| Tip Length | 12.000 in. |
| Tip Length (in.) | 12 |
| Tip Material | Stainless Steel |
| Tip Quantity | 1 |
| Tip Shape | Round |
| Tip Size | 4.0 in. |
| Tip Type | Welded;Double Wall;Angle Cut;Rolled Edge |
| Tubing Diameter | 3.000 in. |
| Type | Cat-Back, Cat-Back |
| Valve Included | No |
| Warranty | 1 Year on Black Finish; Lifetime Construction |
| Warranty Time | 12 |
| GTIN | 00888563008998 |
