Description

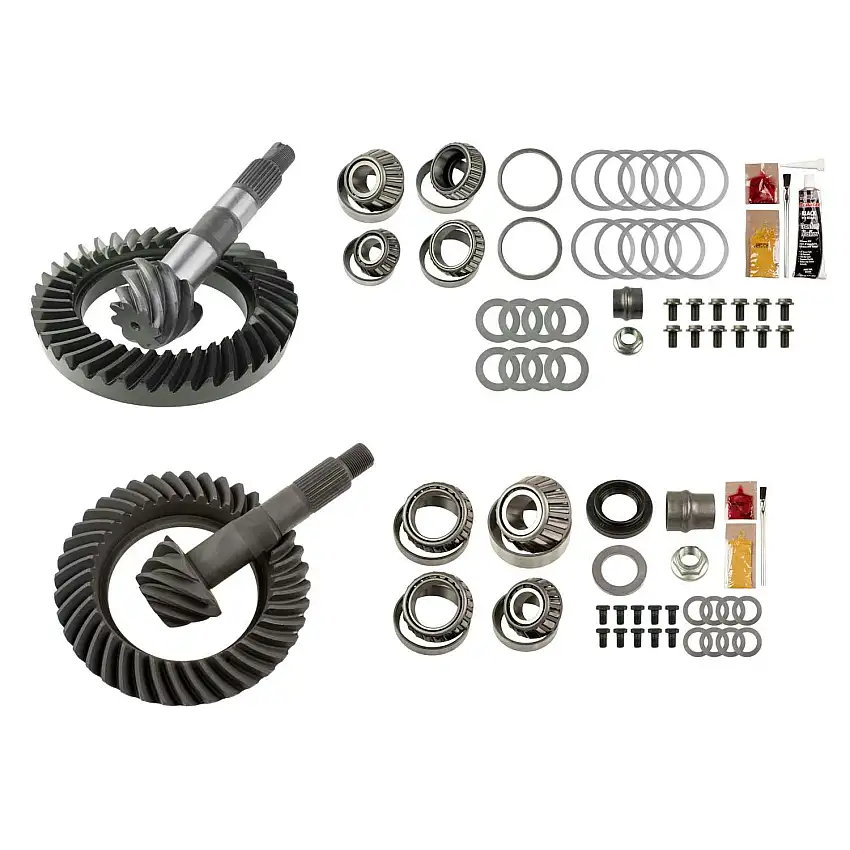

DIFFERENTIAL RING AND PINION FOR TOYOTA 8″ IFS AND TOYOTA 8″ – RING AND PINIONS INCLUDING KOYO BEARING KITS; 4.88 RATIO; WITHOUT OEM REAR E-LOCKERMotive Gear offers some of the toughest drive train components on the market today. If you are looking for the largest line of performance ring and pinion gear options available with gear sets in a wide range of ratios for nearly every application, both on and off-road, check out Motive Gear. Motive Gear products can be found in the winner’s circle at racing events worldwide. The superior quality of Motive Gear components is the result of years of racing development, outstanding design and state-of-the-art manufacturing methods. Extensive testing is performed on all products by our in-house engineers.
Information:
TOYOTA 4-RUNNER 2003-2009 T8F/T8V6R 4.88
Application Summary:
| Year | Make/Model |
|---|---|
| 2003-2009 | Toyota 4Runner |
| 2007-2009 | Toyota FJ Cruiser |
| Attributes | |
| App/Model | Toyota 8.0 Reverse Clamshell, Toyota 8.0 V6 |
| Country of Origin (Primary) | US |
| Cover Bolt Quantity | Dropout, Dropout |
| Differential Case Design Type | Toyota 8 IFS, Toyota 8, Toyota 8.0 Reverse Clamshell, Toyota 8.0 V6 |
| Emission Code | Legal US |
| Gear Ratio | 4.88 |
| Harmonized Tariff Code (Schedule B) | 8708990011 |
| Hazardous Material Code | N |
| Life Cycle Status Code | Available to Order |
| NAFTA Preference Criterion Code | B |
| Pinion Gear Tooth Quantity | 8, 8 |
| Pinion Shaft Diameter | 1.37 Front (TAC488IFSL), 1.378 Rear (TL488L29), 1.37 Front (TAC488IFSL), 1.378 Rear (TL488L29) |
| Pinion Spline Count | 29, 29 |
| Position | Front and Rear |
| Ratio | 4.88 |
| Ring and Pinion Gear Ratio | 4.88 |
| Ring Gear Bolt Quantity | 10, 10 |
| Ring Gear Diameter | 8 Front (TAC488IFSL), 7.8 Rear (TL488L29) |
| Ring Gear Material | 8620 Steel, 8620 Steel |
| Ring Gear Outside Diameter | 7.8 Rear (TL488L29), 8 Front (TAC488IFSL) |
| Ring Gear Rotation | Reverse Front (TAC488ISFL), Standard Rear (TL488L29), Reverse Front (TAC488ISFL), Standard Rear (TL488L29) |
| Ring Gear Tooth Quantity | 39, 39 |
| SDR Required Flag | N |
| Taxonomy A | LD Differential, LD Differential |
| Taxonomy B | Ring and Pinion Gear Packages, Ring and Pinion Gear Packages |
| Taxonomy C | Front and Rear, Front and Rear |
| Taxonomy D | 4.88, 4.88 |
| GTIN | 00698231549971 |
