Description

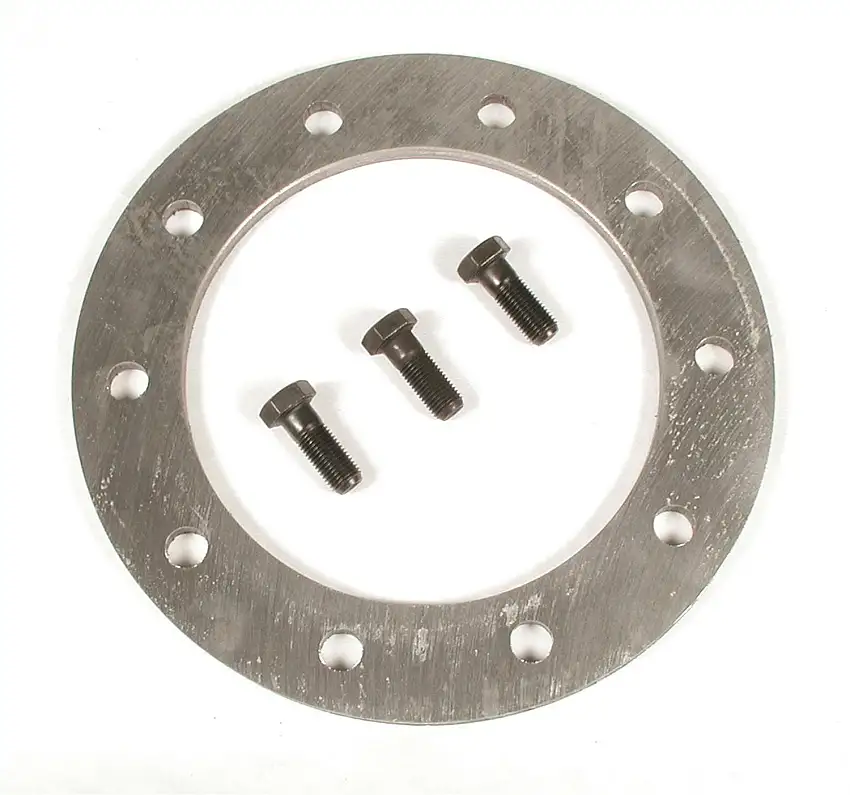

Fits Chevrolet 1965-1972 12-Bolt 8.875 Inch Rear End*This spacer should only be used when using the Series Four Gearset on a Series Three Carrier. See image 2 for more information on the differences between the Series. The thickness of this spacer, .305″-.315″, coincides with the difference between the series 3 and 4 Carriers. The Series 2 Carrier, being only a little over 1/2 inch thick at the ring gear flange, is not suitable for mid to high HP with slicks.
- Includes (12) 3/8″-24 x 1-1/8″ Long Bolts
- High Quality Grade-8 Bolts w/ Black Oxide Coating
- Ring Gear Spacer Thickness .305″-.315″ – High Carbon Steel – Blanchard Ground to Ensure Parallel Alighnment
- Bolt Hole Diameter .437″
- Allows the use of a Series 4 Gearset on a Series 3 Carrier
Information:
*This spacer should only be used when using the Series Four Gearset on a Series Three Carrier. See image 2 for more information on the differences between the Series. The thickness of this spacer, .305″-.315″, coincides with the difference between the series 3 and 4 Carriers. The Series 2 Carrier, being only a little over 1/2 inch thick at the ring gear flange, is not suitable for mid to high HP with slicks.
| Attributes | |
| ASIN | B000CMIZZS |
| Brand | Mr. Gasket, Mr. Gasket |
| Category | Driveline and Axles |
| Country of Origin (Primary) | US |
| Emission Code | 5, 5 |
| Finish | Bare, Bare |
| Harmonized Tariff Code (Schedule B) | 8708937500 |
| Hazardous Material Code | N |
| Item Weight | 2.450 lbs. |
| Life Cycle Status Code | Available to Order |
| Material | Steel, Steel |
| NAFTA Preference Criterion Code | B |
| Part Type | Differential Side Bearing Spacer |
| Product Type | Drivetrain Accessories, Ring Gear spacer |
| SDR Required Flag | N |
| Sub Category | Hardware, Fasteners and Fittings |
| Warning | California Proposition 65, California Proposition 65 |
| Warranty | Limited 90 Day, Manufacturer’s Limited 90 Day Warranty |
| Weight | 2.45, 2.4500 |
| GTIN | 00084041109021 |
