Description

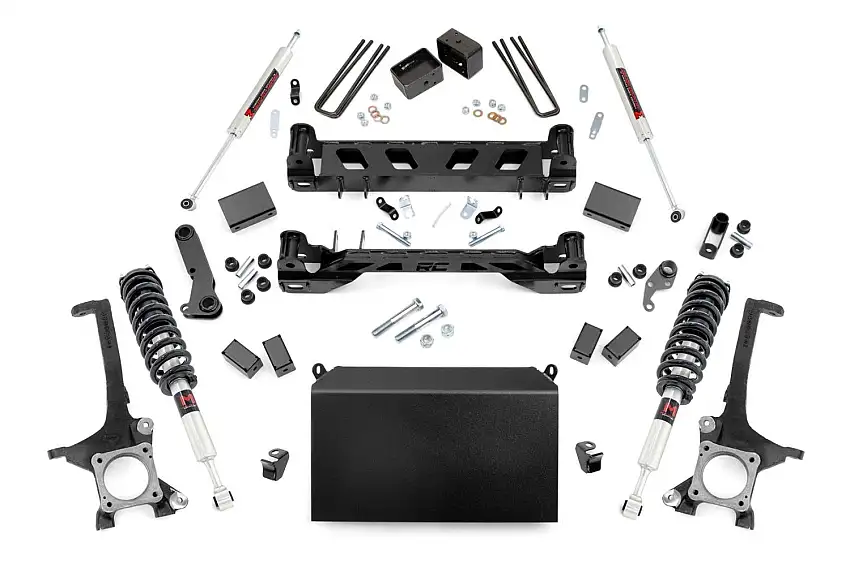

6 Inch Lift Kit – M1 Struts/M1 – Toyota Tundra 4WD (2016-2021)You’ll never look at a Tundra the same way after installing Rough Country’s 6-inch Toyota Tundra kit. This all-inclusive kit is a total transformation for your truck, with durable lifted knuckles, protective skid plate, and all the brackets and hardware needed to set your truck to a factory-like geometry while providing additional ground clearance. The beefy front crossmember features a high-clearance design to help traverse off-road obstacles with no hang-ups.Run larger wheels and tires while giving your truck a one-of-a-kind look and exceptional off-road performance. This kit affords your truck an aggressive appearance and a higher profile that is sure to demand attention. This kit includes Rough Country’s Nitrogen-charged N3 Shocks for the ultimate balance in highway ride quality and off-road vibration dampening. Includes Rough Country’s Lifetime Replacement Guarantee.
- Unmatched ground clearance due to high clearance crossmember design.
- 100% precision laser cut materials used in latest computer aided design process.
- Levels the front with the rear of the vehicle
- Will work with factory 18-inch or larger wheels.
- Requires no modification to the stock differential mounts, drivetrain or exhaust.
- Lifted front struts help maintain smooth, factory-like ride
- Front struts are structurally engineered for lifted applications
- Front struts are lifted 6-inches, eliminating the need for strut spacers
- Fabricated blocks are stronger and offer a longer lifespan than cast blocks.
Information:
Cutting and drilling is required. Does NOT fit TRD Pro Series models Does NOT fit XSP-X models. Requires 18-inch or larger wheels. Stock 18-inch or larger wheels can be used but can accommodate tires no wider than 11.5-inch. In some cases minor trimming may be needed to clear 35-inch tires. On vehicles equipped with a two piece driveshaft there is the potential for take off vibration, this can be corrected with SKU: 1776BOX1 carrier bearing shim kit. Please view instructions for complete information on proper tire / wheel combinations.
Application Summary:
| Year | Make/Model |
|---|---|
| 2016-2021 | Toyota Tundra |
| Attributes | |
| Category | Susp Lift Kits 4wd, Susp Lift Kits 4wd |
| Country of Origin (Primary) | US |
| Front Components | Lifted knuckles, M1 Monotube Struts, Front crossmember, Rear crossmember, Steering stops, Brake line brackets, Differential drop brackets, Bumpstop brackets, Sway-bar brackets, Lower skid plate, Hardware |
| Harmonized Tariff Code (Schedule B) | 8708801600 |
| Hazardous Material Code | N |
| Install Time | 8-10 hours |
| Life Cycle Status Code | Available to Order |
| Lift/Drop Height | 6 in. |
| NAFTA Preference Criterion Code | B |
| Rear Components | Fabricated lift blocks, U-bolts, Brake line brackets, Hardware |
| SDR Required Flag | N |
| Shipping Group | No Restrictions |
| Shipping Options | No Restrictions |
| Ships in Multiple Boxes | Y, Y |
| Tire, Wheel, and Offset Info | 35×12.50R18:18×8.5:5×150:+0:-; 35×12.50R18:18×8.5:5×150:+1:-; 35×12.50R18:18×9:5×150:-12:-; 35×12.50R18:18×9:5×150:+0:-; 35×12.50R18:18×9:5×150:+1:-; 35×12.50R18:18×9:5×150:+18:-; 35×12.50R18:18×9:5×150:+20:-; 35×12.50R20:20×9:5×150:-12:-; 35×12.50R20:20×9:5×150:+0:-; 35×12.50R20:20×9:5×150:+1:-; 35×12.50R20:20×9:5×150:+18:-; 295 60R20:20×9:5×150:+18:-; 35×12.50R20:20×9:5×150:+20:-; 35×12.50R20:20×10:5×150:-25:Minor Trimming; 35×12.50R20:20×10:5×150:-24:Minor Trimming; 35×12.50R20:20×10:5×150:-19:Minor Trimming; 295 60R20:20×10:5×150:-19:Minor Trimming; 35×12.50R20:20×10:5×150:-18:Minor Trimming; 35×12.50R22:22×10:5×150:-25:Minor Trimming; 35×12.50R22:22×10:5×150:-24:Minor Trimming; 35×12.50R22:22×10:5×150:-19:Minor Trimming; 35×12.50R22:22×10:5×150:-18:Minor Trimming |
| Utv Product | N |
| GTIN | 00840269918681 |
