Description

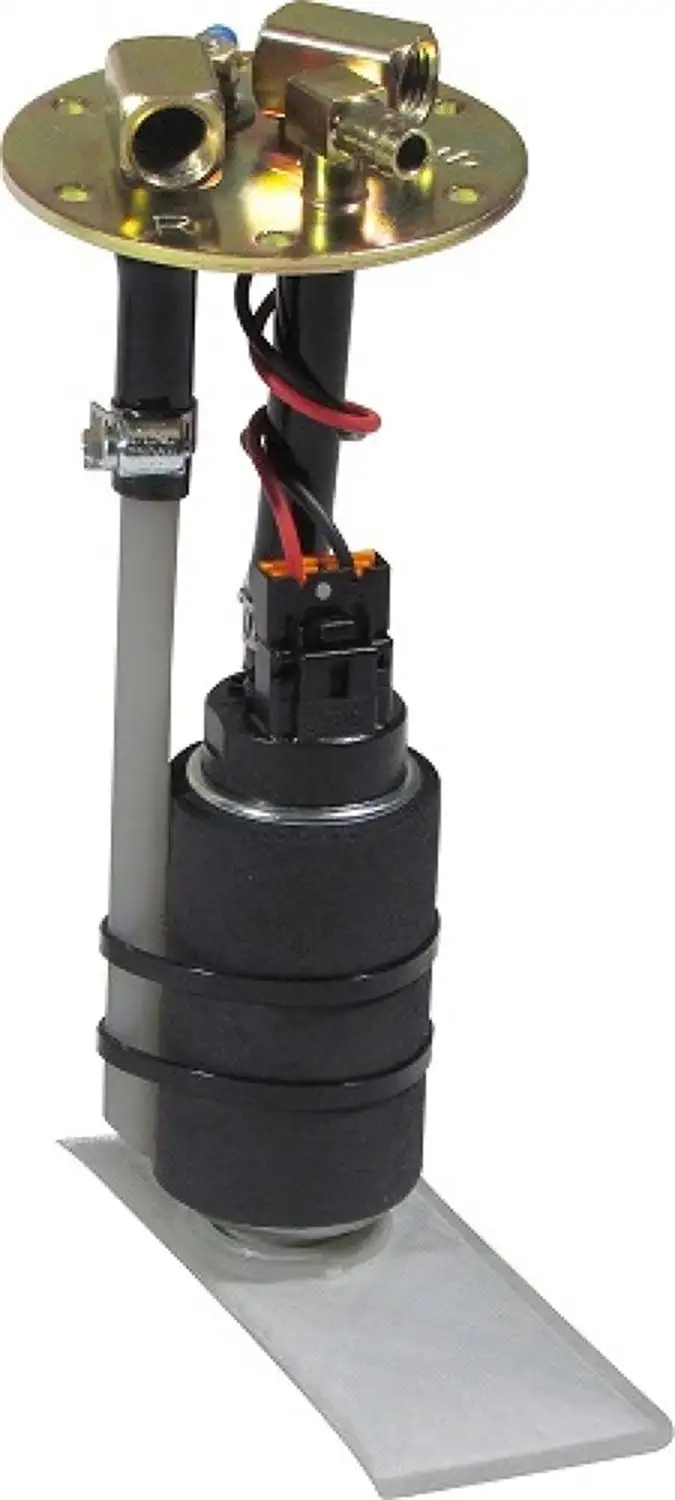

Replacement 400 LPH FUEL PUMP AND HANGER ASSEMBLY400 LPH Electric Fuel Pump Assembly for Sniper EFI Fuel Tanks. Oven brazed fittings can withstand 100 psi. Genuine Walbro Fuel Pump included. 1/4″ NPT Supply and Return line. For a better seal, use Permatex Indian Head Gasket Shellac Compound or Aviation Form-A-Gasket sealant on the gasket and screws.
- 1/4″ NPT Supply and Return Line
- In-Tank Wire Harness
- Made in USA
- Heavy 10 gauge no-warp mounting plate
- Barbed Vent Fittings
- Up to 100 PSI
- New Mounting Screws and gasket available separately
Information:
New Mounting Screws and gasket available separately. *19-170 kit is a thicker gasket and longer screws for use on the GM A Body (Chevelle, GTO, etc….) fuel tanks since they are shallower at the point where the fuel pump is mounted. *19-169 kit for all other EFI fuel tanksConnect your in-tank wire harness to the fuel pump, making sure that the connections are secure. Route the wires through the pass through fitting being sure to leave a little slack to prevent strain or chaffing, Use a 9mm wrench to tighten the upper jam nut on the wire pass through in 1/4 turn increments until the wire no longer moves up and down. BE CAREFULL NOT TO OVERTIGHTEN DOING SO COULD BREAK THE FITTING OR CAUSE A LEAK.
| Attributes | |
| Brand | Holley Sniper EFI |
| Category | Air and Fuel Delivery |
| Color | Gold, Gold |
| Connector Quantity | N/A |
| Country of Origin (Primary) | TW |
| Emission Code | 5, 4 |
| Finish | Gold Iridited, Gold Iridited |
| Fuel Sending Unit Included | No |
| Fuel Tank Pressure Sensor Included | No |
| Fuel Type | Gasoline, Gasoline |
| Gasket Or Seal Included | No |
| Harmonized Tariff Code (Schedule B) | 8413301000 |
| Hazardous Material Code | N |
| Life Cycle Status Code | Available to Order |
| Material | Steel, Steel |
| NAFTA Preference Criterion Code | B |
| Part Type | Fuel Pump Module Assembly |
| Product Type | Fuel Pump, Fuel Pump |
| Regulator Included | No |
| Sale Category | Air and Fuel Delivery |
| SDR Required Flag | N |
| Strainer Included | Yes |
| Sub Category | Fuel Pumps and Related Components |
| Terminal Quantity | N/A, N/A |
| Universal Or Specific Fit | Universal |
| Warning | California Proposition 65, California Proposition 65 |
| Warranty | Limited 90 Day, Manufacturer’s Limited 90 Day Warranty |
| GTIN | 00090127003527 |
