Description

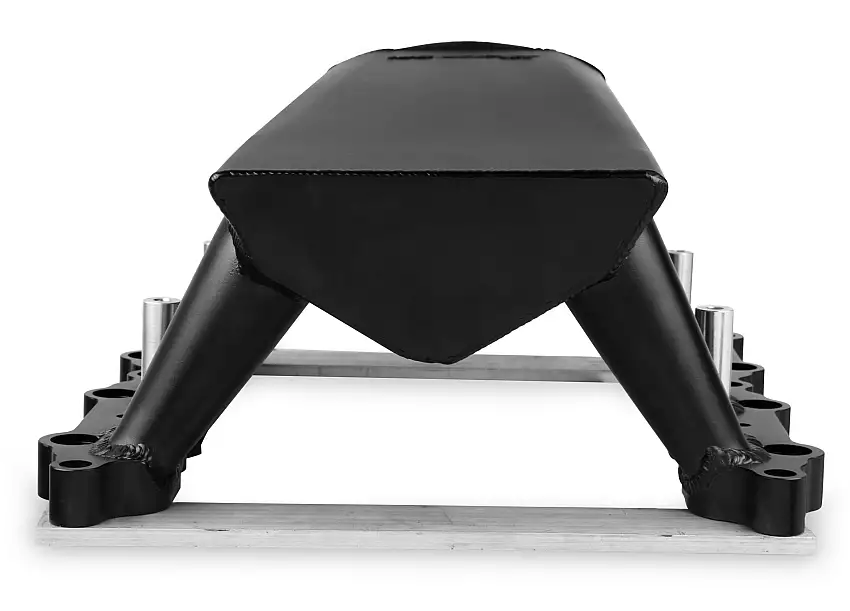

Hi-Ram Sheet Metal Fabricated Intake Manifold 2011-14 Ford 5.0L Coyote 90mm Throttle Body opening + Fuel Rail Kit Black with Sniper EFI logoHolley is now offering budget friendly fabricated intake manifolds for LS, Small Block Chevy and Small Block Ford engines in carbureted and EFI versions!
- Intake runners with tapered top is designed to increase air velocity and more evenly distribute airflow to all 8 cylinders improving performance and throttle response
- 3mm (1/8″) thick T6061 sheet aluminum construction for maximum durability
- 100% TIG welded for strength and durability
- Black Finish creates stealthy under-hood styling
- Product includes all gaskets and hardware for a hassle-free installation
- 92mm throttle bore opening for increased air flow
- Includes 3/8″ Fuel rail kits (Sniper logo laser engraved)
Information:
When using a stock throttle body with this intake manifold, use p/n 860003 Throttle Body Spacer to create proper throttle body clearance.
Application Summary:
| Year | Make/Model |
|---|---|
| 2011-2014 | Ford F-150 |
| 2011-2014 | Ford Mustang |
| Attributes | |
| Basic Operating RPM Range | 2200-6800 |
| Brand | Holley Sniper EFI, Holley Sniper EFI |
| Carburetor Flange | N/A |
| Carburetor Quantity | N/A |
| Category | Air and Fuel Delivery, Air and Fuel Delivery |
| Clearance Category | Air and Fuel Delivery |
| CNC Ported | No |
| Color | Black, Black |
| Construction | Fabricated, Fabricated |
| Country of Origin (Primary) | CN |
| Deck Height | 8.937 |
| Discount Percentage | 26-50% |
| EGR Port | No, No |
| Emission Code | 4, 4, Off Road |
| Engine | Ford 5.0L Coyote, Ford Coyote |
| Finish | Black |
| Flange Style | N/A |
| Front Height | 7.165 inch |
| Front Maximum Height | 7.165, 7.165 IN |
| Fuel Injectors Included | No, No |
| Gasket Or Seal Included | Yes, Yes |
| Grade Type | Performance |
| Harmonized Tariff Code (Schedule B) | 8409915085 |
| Hazardous Material Code | N |
| Injector Style Provision | EV6 USCAR, EV6 USCAR |
| Life Cycle Status Code | Available to Order |
| Material | Aluminum, Aluminum |
| NAFTA Preference Criterion Code | B |
| Plenum Finish | Black, Black |
| Product Type | Intake Manifold, Intake Manifold |
| Rear Height | 6.574 inch, 6.574 inch IN |
| Rear Maximum Height | 6.574 IN, 6.574 |
| RPM Power Band | 2200-6800 RPM |
| Runner Length | 5.709″ (145mm), 5.709″ (145mm) |
| Sale Category | Air and Fuel Delivery |
| SDR Required Flag | N |
| Single Or Dual Plane Type | Single Plane, Single Plane |
| Style | EFI, EFI |
| Throttle Body Bore Diameter | 90 MM |
| Throttle Body Gasket Included | Yes |
| Throttle Bore | 90mm, 90mm MM |
| Vacuum Ports | (3) 1/8″-28BSPT & (1) 1/4″-19BSPT, (3) 1/8″-28BSPT & (1) 1/4″-19BSPT |
| Warning | California Proposition 65, California Proposition 65 |
| Warranty | Limited 90 Day, Manufacturer’s Limited 90 Day Warranty |
| GTIN | 00847875006702 |
