Description

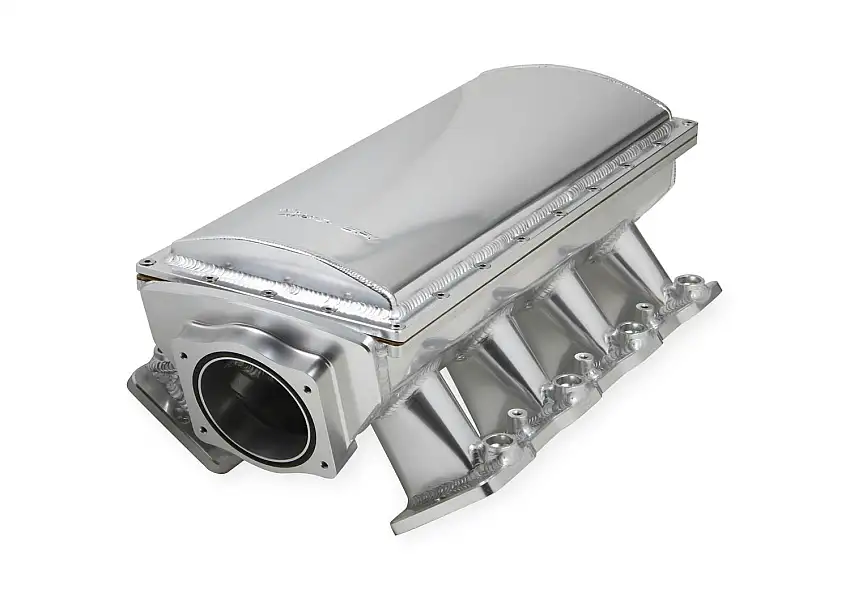

Hi-Ram Sheet Metal Fabricated Intake Manifold LS1/LS2/LS6 90mm Race Series w/ Removable top, Throttle Body Spacer & Fuel Rail Kit w/ Sniper EFI Logo – SilverEach manifold is ready to bolt on out of the box and are designed to accept our Sniper high-flow throttle bodies and include high flow fuel rail kit, TB Spacer, and a removable top. Each manifold is precision fixtured and welded for a perfect fit and maximum structural integrity.
- Intake runners with tapered top is designed to increase air velocity and more evenly distribute airflow to all 8 cylinders improving performance and throttle response
- Silver finish creates high impact under-hood styling
- Larger Intake plenum vs. standard Sniper EFI manifolds for max effort engines and boosted applications
- 90mm throttle bore opening for increased air flow
- Product includes all gaskets and hardware for a hassle-free installation
- 100% TIG welded for strength and durability
- 5mm (13/64″) thick T6061 sheet aluminum construction for maximum durability
- Longer Intake runner lengths offering a wider RPM operating range of 2100-8200 RPM
- The Sniper intake will only accept EV1 style injectors.
- Welded seams inside and out for added strength and durability on high horsepower, max-effort engines and boosted applications
- Removable top for ease of inspection, modification, and addition of sensors
- Includes 3/8″ Fuel rail kits (Sniper logo laser engraved)
Application Summary:
| Year | Make/Model |
|---|---|
| 2004-2007 | Cadillac CTS |
| 1998-2002 | Chevrolet Camaro |
| 1997-2007 | Chevrolet Corvette |
| 2005-2006 | Chevrolet SSR |
| 2006-2009 | Chevrolet Trailblazer |
| 1998-2002 | Pontiac Firebird |
| 2004-2006 | Pontiac GTO |
| Attributes | |
| Basic Operating RPM Range | 3500-8000 |
| Brand | Holley Sniper EFI, Holley Sniper EFI |
| Carburetor Flange | N/A |
| Carburetor Quantity | N/A |
| Category | Sniper EFI Intakes, Sniper EFI Intakes |
| Category Filter | Intake Manifolds |
| Clearance Category | Air and Fuel Delivery, Intake Manifolds |
| CNC Ported | No |
| Color | Polished, Silver |
| Construction | Fabricated, Fabricated |
| Country of Origin (Primary) | CN |
| Deck Height | 9.24 |
| Discount Percentage | 26-50% |
| EGR Port | No, No |
| Emission Code | 4, 4, Off Road |
| Engine | GM LS1/LS2/LS6, GM LS1/LS2/LS6 |
| Finish | Silver |
| Flange Style | N/A |
| Front Height | 9.62 inch, 9.62 inch IN |
| Front Maximum Height | 9.62, 9.62 IN |
| Fuel Injectors Included | No, No |
| Fuel System Type | EFI, EFI |
| Gasket Or Seal Included | Yes, Yes |
| Grade Type | Performance |
| Harmonized Tariff Code (Schedule B) | 8409915085 |
| Hazardous Material Code | N |
| Injector Style Provision | EV1, EV1 |
| Life Cycle Status Code | Available to Order |
| Manifold Type | Fabricated, Fabricated |
| Material | Aluminum, Aluminum |
| NAFTA Preference Criterion Code | B |
| Product Type | Intake Manifold, Intake Manifold |
| Rear Height | 9.015 inch, 9.015 inch IN |
| Rear Maximum Height | 9.015 IN, 9.015 |
| Recommended Use | Forced Induction, Forced Induction |
| RPM Power Band | 3500-8000 RPM, 3500-8000 RPM RPM |
| Runner Length | 4.527″ (115mm), 4.527″ (115mm) |
| Sale Category | Air and Fuel Delivery |
| SDR Required Flag | N |
| Single Or Dual Plane Type | Single Plane, Single Plane |
| Style | EFI, EFI |
| Throttle Body Bore Diameter | 90 MM |
| Throttle Body Gasket Included | Yes |
| Throttle Bore | 90mm, 90mm MM |
| Vacuum Ports | (3) 1/8″-28BSPT & (1) 1/4″-19BSPT, (3) 1/8″-28BSPT & (1) 1/4″-19BSPT |
| Warning | California Proposition 65, California Proposition 65 |
| Warranty | Limited 90 Day, Manufacturer’s Limited 90 Day Warranty |
| GTIN | 00090127001301 |
