Description

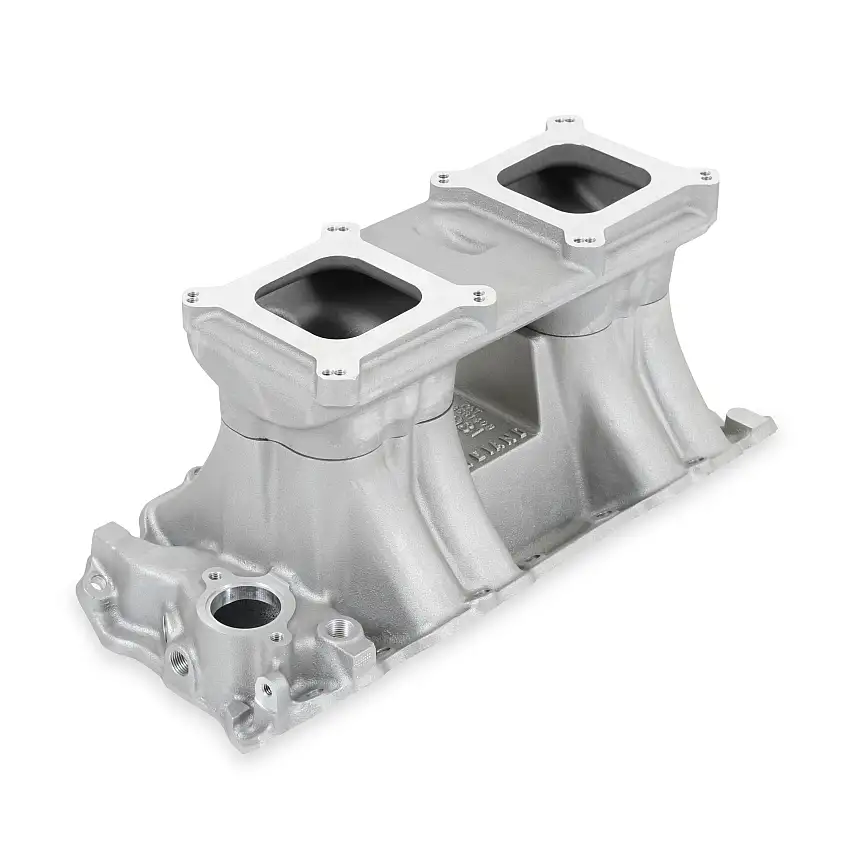

Hi-Ram Intake Manifold 396ci-502ci with Performance Oval Port HeadsIf you are not satisfied with a Nostalgia Series intake, we will gladly exchange it or refund your money. Our tech service representatives can be reached at 1-866-464-6553.
- 2500-7800 RPM power band
- 2 x 4 carburetor top
- Square flange carburetor mounting
- Height: Front 10.12″, Rear 10.93″
- Weiand Nostalgia Series Intake Manifold
- Power band: 2800-8000 RPM
- Large volume plenum
- Special D-shaped port runner design
- Carb Flange Center-To Center 9-11/16″
- Port Size: 1.82” height 1.60″ width
Information:
GM HEI will not clear, Use Side-by-Side 2 x 4 Tunnel Ram Carburetor Linkage Kit # 4022. When using carburetors with vaccum operated secondaries, use Diaphragm Housing Covers # 20-28, for more even and balanced secondary operation.Will fit tall blocks with use of Weiand P/N 8206 manifold spacer plate kit.
Application Summary:
| Year | Make/Model |
|---|---|
| 1963 | Chevrolet Bel Air |
| 1966-1975 | Chevrolet Bel Air |
| 1963 | Chevrolet Biscayne |
| 1966-1969 | Chevrolet Biscayne |
| 1971-1972 | Chevrolet Biscayne |
| 1973 | Chevrolet Blazer |
| 1972 | Chevrolet Brookwood |
| 1975-1980 | Chevrolet C10 |
| 1968-1969 | Chevrolet C10 Pickup |
| 1973-1974 | Chevrolet C10 Pickup |
| 1968-1969 | Chevrolet C10 Suburban |
| 1973-1980 | Chevrolet C10 Suburban |
| 1975-1986 | Chevrolet C20 |
| 1968-1969 | Chevrolet C20 Pickup |
| 1973-1974 | Chevrolet C20 Pickup |
| 1968-1969 | Chevrolet C20 Suburban |
| 1973-1986 | Chevrolet C20 Suburban |
| 1975-1986 | Chevrolet C30 |
| 1968-1969 | Chevrolet C30 Pickup |
| 1973-1974 | Chevrolet C30 Pickup |
| 1968-1972 | Chevrolet Camaro |
| 1966-1976 | Chevrolet Caprice |
| 1966 | Chevrolet Chevelle |
| 1968-1973 | Chevrolet Chevelle |
| 1968 | Chevrolet Chevy II |
| 1966-1974 | Chevrolet Corvette |
| 1969-1975 | Chevrolet El Camino |
| 1976 | Chevrolet G20 |
| 1973-1974 | Chevrolet G20 Van |
| 1975-1976 | Chevrolet G30 |
| 1973-1974 | Chevrolet G30 Van |
| 1963 | Chevrolet Impala |
| 1966-1976 | Chevrolet Impala |
| 1976 | Chevrolet K10 |
| 1980 | Chevrolet K10 |
| 1968-1969 | Chevrolet K10 Pickup |
| 1974 | Chevrolet K10 Pickup |
| 1968-1969 | Chevrolet K10 Suburban |
| 1976-1978 | Chevrolet K20 |
| 1968-1969 | Chevrolet K20 Pickup |
| 1973-1974 | Chevrolet K20 Pickup |
| 1977 | Chevrolet K30 |
| 1980-1986 | Chevrolet K30 |
| 1968-1969 | Chevrolet K30 Pickup |
| 1973-1974 | Chevrolet K30 Pickup |
| 1976-1978 | Chevrolet K5 Blazer |
| 1970-1972 | Chevrolet Kingswood |
| 1973-1975 | Chevrolet Laguna |
| 1973-1975 | Chevrolet Malibu |
| 1970-1975 | Chevrolet Monte Carlo |
| 1969-1970 | Chevrolet Nova |
| 1987-1988 | Chevrolet R30 |
| 1989 | Chevrolet R3500 |
| 1970 | Chevrolet Townsman |
| 1972 | Chevrolet Townsman |
| 1987-1988 | Chevrolet V30 |
| 1989 | Chevrolet V3500 |
| Attributes | |
| ASIN | B000LUDI3A |
| Basic Operating RPM Range | 2800-8000 |
| Brand | Weiand, Weiand |
| Carburetor Flange | 4150 Square Bore |
| Category | Air and Fuel Delivery, Intake Manifolds |
| Category Filter | Intake Manifolds |
| Clearance Category | Intake Manifolds |
| CNC Ported | No |
| Color | Natural, Natural |
| Construction | Cast, Cast |
| Country of Origin (Primary) | US |
| Cylinder Head Type | Standard |
| Deck Height | 9.8 |
| EGR Port | No |
| Emission | Without EGR |
| Emission Code | 4, 4, Off Road |
| Engine | Chevy Big Block V8, Chevy Big Block V8 |
| Engine Make/Size | Chevy Big Block V8 |
| Finish | Satin |
| Flange Style | 4150 Square Bore |
| Front Height | 10.120 in., 10.12 inch |
| Front Maximum Height | 10.12, 10.12 |
| Fuel Injectors Included | No |
| Fuel System Type | Carb, Carb |
| Gasket Or Seal Included | No |
| Grade Type | Performance |
| Harmonized Tariff Code (Schedule B) | 8409915085 |
| Hazardous Material Code | N |
| Life Cycle Status Code | Available to Order |
| Manifold Type | Hi-Ram, Hi-Ram |
| Material | Aluminum |
| NAFTA Preference Criterion Code | B |
| Number Of Carbs | One |
| Plenum Finish | Satin, Cast |
| Position | Upper |
| Product Type | Intake Manifold, Intake Manifold |
| Rear Height | 10.930 in., 10.93 inch |
| Rear Maximum Height | 10.93, 10.93 |
| RPM Power Band | 2800-8000 |
| RPM Range | 2800-8000 |
| Sale Category | Air and Fuel Delivery |
| SDR Required Flag | N |
| Single Or Dual Plane Type | Single |
| Throttle Body Gasket Included | No |
| Usage | Racing |
| Vacuum Ports | No |
| Warning | California Proposition 65 |
| Warranty | Limited 90 Day, Manufacturer’s Limited 90 Day Warranty |
| GTIN | 00032474198105 |
