Description

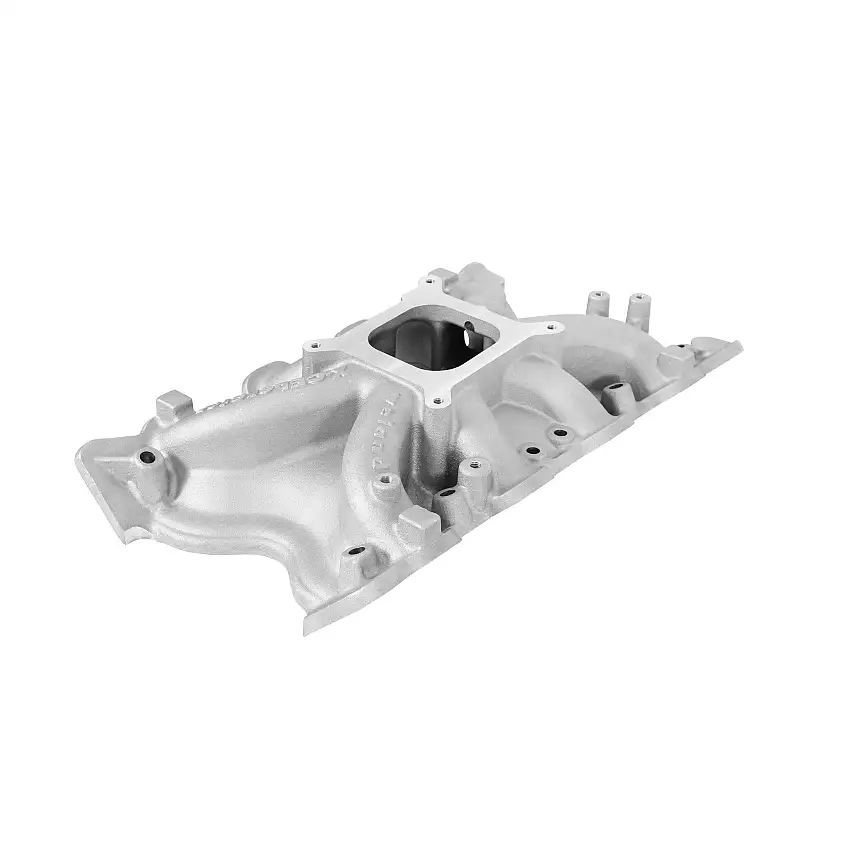

X-CELerator Intake Manifold for Ford 351 Cleveland V8 2V HeadThe WEIAND X-CELerator™ SERIES: 360°, single-plane, open plenum manifold designed primarily for high-performance street, drag, marine and oval track use. With an effective rpm range of 2000 to 6500 rpm, this series works best with a
- New updated casting design
- No EGR provision
- Port Size: 1.95” height 1.34″ width
- Single Plane Design
- Square Carburetor Mounting Flange
- Power band: 1500-7000 RPM
- Height: Front 4.28″, Rear 5.36″
Application Summary:
| Year | Make/Model |
|---|---|
| 1971-1974 | Ford Country Sedan |
| 1971-1974 | Ford Country Squire |
| 1971-1972 | Ford Custom |
| 1971-1974 | Ford Custom 500 |
| 1970 | Ford Fairlane |
| 1970 | Ford Falcon |
| 1970-1974 | Ford Galaxie 500 |
| 1972-1974 | Ford Gran Torino |
| 1971-1974 | Ford LTD |
| 1970-1973 | Ford Mustang |
| 1970-1974 | Ford Ranch Wagon |
| 1970-1974 | Ford Ranchero |
| 1970-1974 | Ford Torino |
| 1972-1973 | Mercury Colony Park |
| 1970-1974 | Mercury Cougar |
| 1970-1971 | Mercury Cyclone |
| 1972-1973 | Mercury Marquis |
| 1970-1974 | Mercury Montego |
| 1972-1973 | Mercury Monterey |
| Attributes | |
| ASIN | B000LU9SQG |
| Basic Operating RPM Range | 2000-6500 |
| Brand | Weiand, Weiand |
| Carburetor Flange | 4150 Square Bore |
| Category | Engine, Engine |
| CNC Ported | No |
| Color | Natural, Natural |
| Construction | Cast, Cast |
| Country of Origin (Primary) | US |
| Cylinder Head Type | Standard |
| Deck Height | 8.2 |
| EGR Port | No |
| Emission | Without EGR |
| Emission Code | 3, 3, Off Road |
| Engine | Ford Small Block V8, Ford Cleveland |
| Engine Make/Size | Ford Small Block V8 |
| Finish | Satin |
| Flange Style | 4150 Square Bore |
| Front Height | 4.280 in., 4.28 inch |
| Front Maximum Height | 4.28, 4.28 |
| Fuel Injectors Included | No |
| Fuel System Type | Carb, Carb |
| Gasket Or Seal Included | No |
| Grade Type | Performance |
| Harmonized Tariff Code (Schedule B) | 8409915085 |
| Hazardous Material Code | N |
| Life Cycle Status Code | Available to Order |
| Manifold Type | Low Rise, Low Rise |
| Material | Aluminum |
| NAFTA Preference Criterion Code | B |
| Number Of Carbs | One |
| Part Type | Engine Intake Manifold, Engine Intake Manifold |
| Plenum Finish | Satin, Cast |
| Position | Upper |
| Product Type | Intake Manifold, Intake Manifold |
| Rear Height | 5.360 in., 5.36 inch |
| Rear Maximum Height | 5.36, 5.36 |
| RPM Power Band | 1500-7000 |
| RPM Range | 1500-7000 |
| Sale Category | Air and Fuel Delivery |
| SDR Required Flag | N |
| Single Or Dual Plane Type | Single |
| Sub Category | Cylinder Block Components, Cylinder Block Components |
| Throttle Body Gasket Included | No |
| Usage | Street/Strip |
| Vacuum Ports | Yes |
| Warning | California Proposition 65 |
| Warranty | Limited 90 Day, Manufacturer’s Limited 90 Day Warranty |
| GTIN | 00032474751607 |
