Description

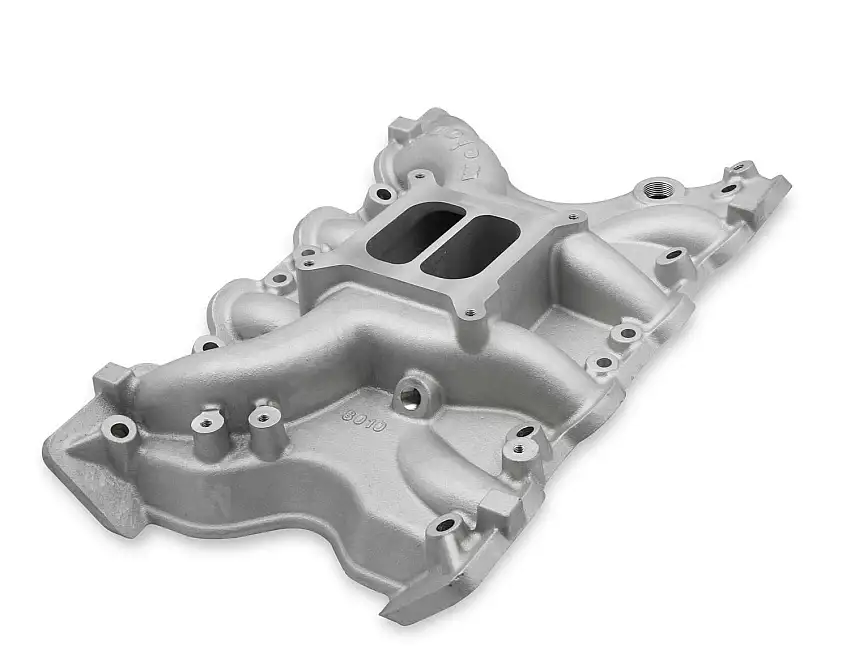

Action +Plus Intake Manifold 351M, 400M V8Action +Plus Intake Manifold 351M, 400M V8
- No EGR provisions
- Height: Front 3.75″, Rear 4.75″
- Square Carburetor Mounting Flange
- Dual Plane Design
- Port Size: 1.85” height 1.32″ width
- Power band: Idle-6000 RPM
Information:
*** In order to use a valley tray/pan with this manifold, a clearance cut will need to be made for the locating dowels.
Application Summary:
| Year | Make/Model |
|---|---|
| 1978-1982 | Ford Bronco |
| 1971-1972 | Ford Custom |
| 1971-1977 | Ford Custom 500 |
| 1980-1981 | Ford E-250 Econoline |
| 1980-1981 | Ford E-250 Econoline Club Wagon |
| 1980-1981 | Ford E-350 Econoline |
| 1980-1981 | Ford E-350 Econoline Club Wagon |
| 1975-1976 | Ford Elite |
| 1977-1979 | Ford F-100 |
| 1977-1981 | Ford F-150 |
| 1977-1981 | Ford F-250 |
| 1977-1981 | Ford F-350 |
| 1971-1974 | Ford Galaxie 500 |
| 1975-1976 | Ford Gran Torino |
| 1971-1978 | Ford LTD |
| 1985-1986 | Ford LTD |
| 1977-1979 | Ford LTD II |
| 1975-1979 | Ford Ranchero |
| 1971-1974 | Ford Thunderbird |
| 1977-1979 | Ford Thunderbird |
| 1972-1976 | Ford Torino |
| Attributes | |
| ASIN | B000LU9SCU |
| Barrel | Four |
| Barrels | 4, 4 |
| Basic Operating RPM Range | Idle – 6000 |
| Brand | Weiand, Weiand |
| Carburetor Flange | 4150 Square Bore |
| Category | Engine, Engine |
| CNC Ported | No |
| Color | Natural, Natural |
| Construction | Cast, Cast |
| Country of Origin (Primary) | CN |
| Cylinder Head Type | Standard |
| Deck Height | 10.297 |
| EGR Port | No |
| Emission | Without EGR |
| Emission Code | 3, 3, Off Road |
| Engine | Ford Small Block V8, Ford Modified |
| Engine Make/Size | Ford Small Block V8 |
| Finish | Satin |
| Flange Style | 4150 Square Bore |
| Front Height | 3.750 in., 3.75 inch |
| Front Maximum Height | 3.75, 3.75 |
| Fuel Injectors Included | No |
| Fuel System Type | Carb, Carb |
| Gasket Or Seal Included | No |
| Grade Type | Performance |
| Harmonized Tariff Code (Schedule B) | 8409915085 |
| Hazardous Material Code | N |
| Life Cycle Status Code | Available to Order |
| Manifold Type | Low Rise, Low Rise |
| Material | Aluminum |
| NAFTA Preference Criterion Code | B |
| Number Of Carbs | One |
| Part Type | Engine Intake Manifold, Engine Intake Manifold |
| Plenum Finish | Satin, Cast |
| Position | Lower |
| Product Type | Intake Manifold, Intake Manifold |
| Rear Height | 4.750 in., 4.75 inch |
| Rear Maximum Height | 4.75, 4.75 |
| RPM Power Band | Idle-6000 |
| RPM Range | Idle-6000 |
| Sale Category | Air and Fuel Delivery |
| SDR Required Flag | N |
| Single Or Dual Plane Type | Single |
| Sub Category | Cylinder Block Components, Cylinder Block Components |
| Throttle Body Gasket Included | No |
| Usage | Street/Strip |
| Vacuum Ports | Yes |
| Warning | California Proposition 65 |
| Warranty | Limited 90 Day, Manufacturer’s Limited 90 Day Warranty |
| GTIN | 00032474801005 |
