Description

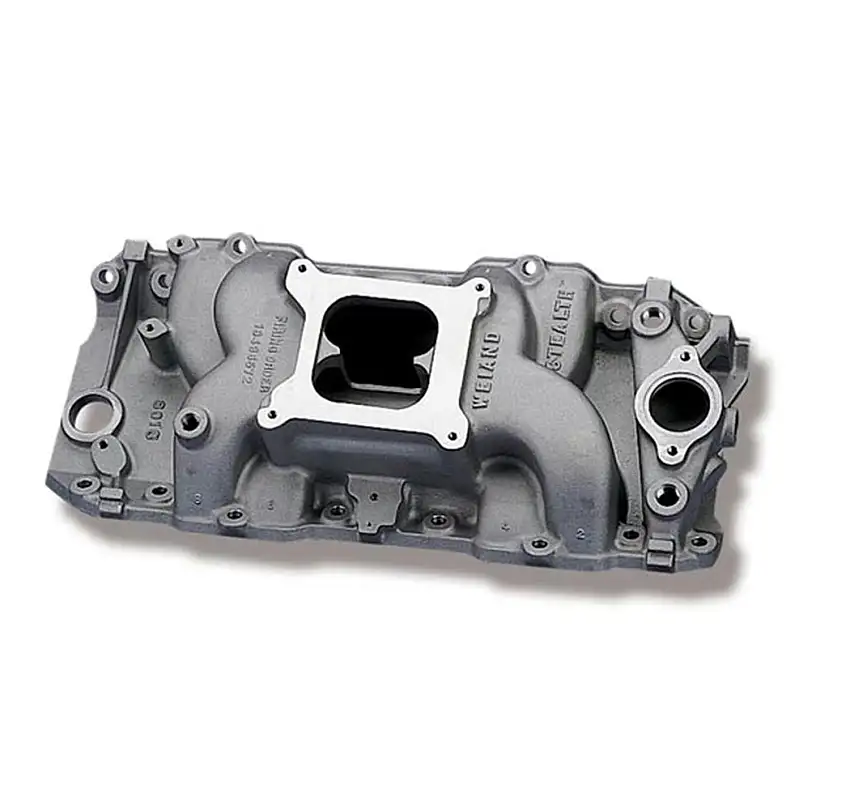

Stealth™ Intake Manifold 396ci-502ci with Performance Oval Port HeadsThis manifold is designed to be used with performance oval port heads.
- 4150 Style Square Bore Mounting Flange
- Power band: Idle-6500 RPM
- Weiand Nostalgia Series Intake Manifold
- High Rise/Dual Plane Design
- Height: Front 4.75″, Rear 5.75″
- Machined for Standard Deck Blocks
- Port Size: 1.84” height 1.64″ width
Information:
Will clear HEI distributor.
Application Summary:
| Year | Make/Model |
|---|---|
| 1963 | Chevrolet Bel Air |
| 1965-1975 | Chevrolet Bel Air |
| 1973-1974 | Chevrolet Blazer |
| 1975-1979 | Chevrolet C10 |
| 1968-1979 | Chevrolet C10 Suburban |
| 1975-1979 | Chevrolet C20 |
| 1968-1979 | Chevrolet C20 Suburban |
| 1975-1979 | Chevrolet C30 |
| 1967-1972 | Chevrolet Camaro |
| 1966-1976 | Chevrolet Caprice |
| 1970-1973 | Chevrolet Chevelle |
| 1965-1974 | Chevrolet Corvette |
| 1966-1975 | Chevrolet El Camino |
| 1963 | Chevrolet Impala |
| 1965-1976 | Chevrolet Impala |
| 1976 | Chevrolet K10 |
| 1979 | Chevrolet K10 |
| 1968-1974 | Chevrolet K10 Suburban |
| 1976-1978 | Chevrolet K20 |
| 1968-1974 | Chevrolet K20 Suburban |
| 1977 | Chevrolet K30 |
| 1976-1978 | Chevrolet K5 Blazer |
| 1970-1975 | Chevrolet Monte Carlo |
| 1969-1972 | Chevrolet Nova |
| 1975-1978 | GMC C15 |
| 1975-1978 | GMC C15 Suburban |
| 1979 | GMC C1500 |
| 1979 | GMC C1500 Suburban |
| 1975-1978 | GMC C25 |
| 1975-1978 | GMC C25 Suburban |
| 1979 | GMC C2500 |
| 1979 | GMC C2500 Suburban |
| 1975-1978 | GMC C35 |
| 1979 | GMC C3500 |
| 1973-1974 | GMC Jimmy |
| 1976 | GMC Jimmy |
| 1976 | GMC K15 |
| 1976-1978 | GMC K25 |
| 1976-1977 | GMC K25 Suburban |
| 1979 | GMC K3500 |
| 1971-1975 | GMC Sprint |
| Attributes | |
| ASIN | B000CQHTNS |
| Barrel | Four |
| Barrels | 4, 4 |
| Basic Operating RPM Range | Idle – 6500 |
| Brand | Weiand, Weiand |
| Carburetor Flange | 4150 Square Bore |
| Category | Air and Fuel Delivery, Intake Manifolds |
| Category Filter | Intake Manifolds |
| Clearance Category | Intake Manifolds |
| CNC Ported | No |
| Color | Natural, Natural |
| Construction | Cast, Cast |
| Country of Origin (Primary) | US |
| Cylinder Head Type | Standard |
| Deck Height | 10.2 |
| EGR Port | No |
| Emission | Without EGR |
| Emission Code | 3, 3, Off Road |
| Engine | Chevy Big Block V8, Chevy Big Block V8 |
| Engine Make/Size | Chevy Big Block V8 |
| Finish | Satin |
| Flange Style | 4150 Square Bore |
| Front Height | 4.750 in., 4.75 inch |
| Front Maximum Height | 4.75, 4.75 |
| Fuel Injectors Included | No |
| Fuel System Type | Carb, Carb |
| Gasket Or Seal Included | No |
| Grade Type | Performance |
| Harmonized Tariff Code (Schedule B) | 8409915085 |
| Hazardous Material Code | N |
| Life Cycle Status Code | Available to Order |
| Manifold Type | High Rise, High Rise |
| Material | Aluminum |
| NAFTA Preference Criterion Code | B |
| Number Of Carbs | One |
| Plenum Finish | Satin, Cast |
| Position | Lower |
| Product Type | Intake Manifold, Intake Manifold |
| Rear Height | 5.750 in., 5.75 inch |
| Rear Maximum Height | 5.75, 5.75 |
| RPM Power Band | Idle-6500 |
| RPM Range | Idle-6500 |
| Sale Category | Air and Fuel Delivery |
| SDR Required Flag | N |
| Single Or Dual Plane Type | Dual |
| Throttle Body Gasket Included | No |
| Usage | Street/Strip |
| Vacuum Ports | No |
| Warning | California Proposition 65 |
| Warranty | Limited 90 Day, Manufacturer’s Limited 90 Day Warranty |
| GTIN | 00032474801906 |
