Description

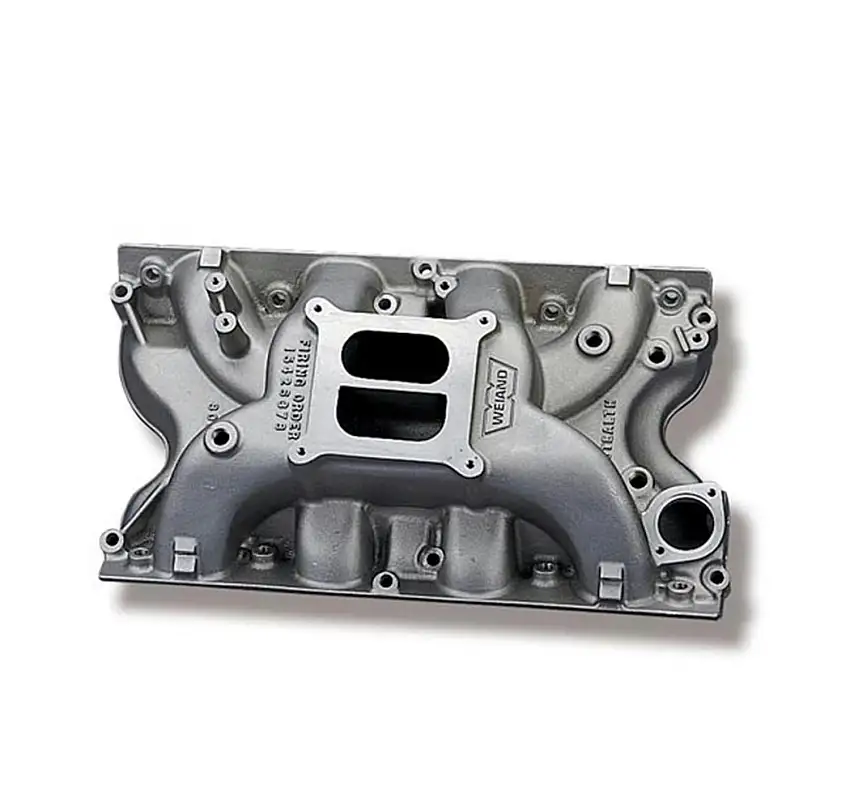

Stealth™ Intake Manifold 429, 460 V8 (Cobra Jet and Super Cobra Jet heads)Weiand Nostalgia series intakes are proudly cast and machined in the USA.
- No EGR provisions
- Height: Front 5.25″, Rear 6.75″
- Weiand Nostalgia Series Intake Manifold
- Port Size: 2.49” height 2.20″ width
- High Rise Dual Plane Design
- Square Carburetor Mounting Flange
- Power band: Idle-6800 RPM
Information:
Port-matching manifold to heads is necessary forbest performance results.
Application Summary:
| Year | Make/Model |
|---|---|
| 1969-1974 | Ford Country Sedan |
| 1969-1974 | Ford Country Squire |
| 1969-1972 | Ford Custom |
| 1969-1976 | Ford Custom 500 |
| 1978 | Ford E-100 Econoline |
| 1975-1980 | Ford E-250 Econoline |
| 1975-1987 | Ford E-250 Econoline Club Wagon |
| 1975-1987 | Ford E-350 Econoline |
| 1977-1987 | Ford E-350 Econoline Club Wagon |
| 1975-1976 | Ford Elite |
| 1973-1974 | Ford F-100 |
| 1979 | Ford F-100 |
| 1975-1979 | Ford F-150 |
| 1973-1979 | Ford F-250 |
| 1983-1987 | Ford F-250 |
| 1973-1979 | Ford F-350 |
| 1983-1987 | Ford F-350 |
| 1970 | Ford Fairlane |
| 1969-1974 | Ford Galaxie 500 |
| 1972-1976 | Ford Gran Torino |
| 1969-1978 | Ford LTD |
| 1969-1971 | Ford Mustang |
| 1969-1974 | Ford Ranch Wagon |
| 1970-1977 | Ford Ranchero |
| 1968-1976 | Ford Thunderbird |
| 1970-1976 | Ford Torino |
| 1968-1978 | Lincoln Continental |
| 1968-1971 | Lincoln Mark III |
| 1972-1976 | Lincoln Mark IV |
| 1977-1978 | Lincoln Mark V |
| 1969-1974 | Mercury Colony Park |
| 1970-1971 | Mercury Cougar |
| 1973-1976 | Mercury Cougar |
| 1970-1971 | Mercury Cyclone |
| 1975-1978 | Mercury Grand Marquis |
| 1969-1970 | Mercury Marauder |
| 1969-1978 | Mercury Marquis |
| 1970-1976 | Mercury Montego |
| 1969-1974 | Mercury Monterey |
| Attributes | |
| ASIN | B000LU8Q1Y |
| Basic Operating RPM Range | Idle – 6800 |
| Brand | Weiand, Weiand |
| Carburetor Flange | 4150 Square Bore |
| Category | Air and Fuel Delivery, Intake Manifolds |
| Category Filter | Intake Manifolds |
| Clearance Category | Intake Manifolds |
| CNC Ported | No |
| Color | Natural, Natural |
| Construction | Cast, Cast |
| Country of Origin (Primary) | US |
| Cylinder Head Type | Standard |
| Deck Height | 10.3 |
| EGR Port | No |
| Emission | Without EGR |
| Emission Code | 3, 3, Off Road |
| Engine | Ford Big Block V8, Ford Big Block |
| Engine Make/Size | Ford Big Block V8 |
| Finish | Satin |
| Flange Style | 4150 Square Bore |
| Front Height | 5.250 in., 5.25 inch |
| Front Maximum Height | 5.25, 5.25 |
| Fuel Injectors Included | No |
| Fuel System Type | Carb, Carb |
| Gasket Or Seal Included | No |
| Grade Type | Performance |
| Harmonized Tariff Code (Schedule B) | 8409915085 |
| Hazardous Material Code | N |
| Life Cycle Status Code | Available to Order |
| Manifold Type | High Rise, High Rise |
| Material | Aluminum |
| NAFTA Preference Criterion Code | B |
| Number Of Carbs | One |
| Plenum Finish | Satin, Cast |
| Position | Lower |
| Product Type | Intake Manifold, Intake Manifold |
| Rear Height | 6.750 in., 6.75 inch |
| Rear Maximum Height | 6.75, 6.75 |
| RPM Power Band | idle-6800 |
| RPM Range | Idle-6800 |
| Sale Category | Air and Fuel Delivery |
| SDR Required Flag | N |
| Single Or Dual Plane Type | Dual |
| Throttle Body Gasket Included | No |
| Usage | Street/Strip |
| Vacuum Ports | Yes |
| Warning | California Proposition 65 |
| Warranty | Limited 90 Day, Manufacturer’s Limited 90 Day Warranty |
| GTIN | 00032474802101 |
