Description

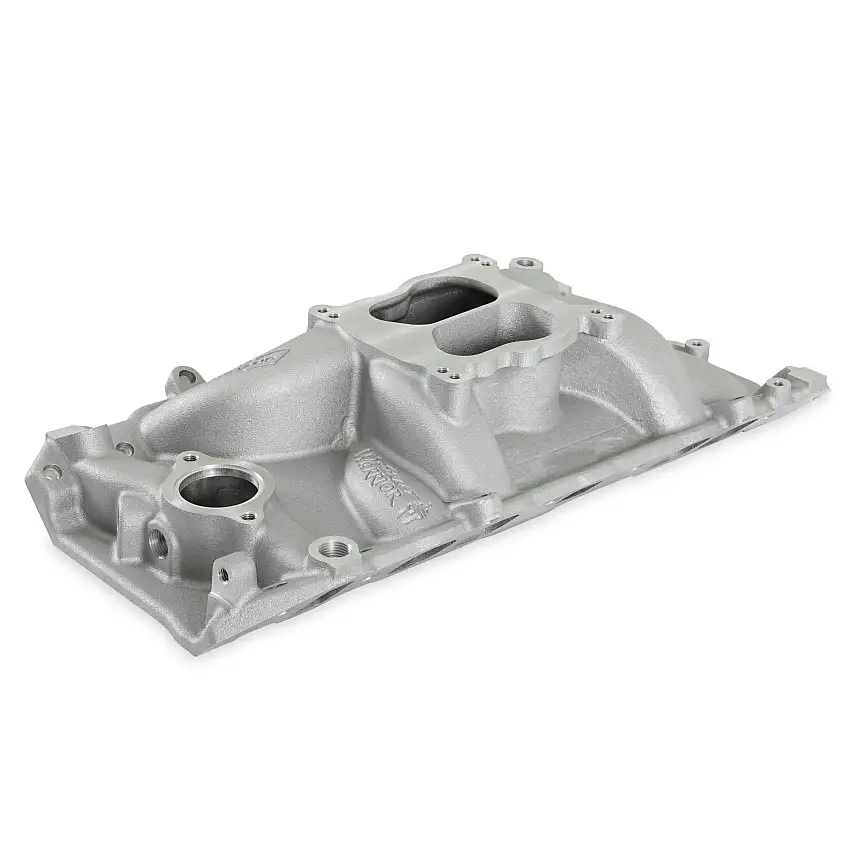

Street Warrior™ Intake Manifold 396-427ci engines with Oval Port HeadsMost of the intakes on the market were developed 20+ years ago when typical engines were 396-427 cubic inches. Not so anymore. With the popularity of larger engines, stroker combinations and more efficient cylinder head and cam designs came the need for intake manifolds to support these combinations. Designed with Computational Fluid Dynamics software, the Street Warrior intake rises to the challenge and delivers the performance to conquer the competition! Want maximum horsepower and torque from today’s engines? Choose Street Warrior!
- All new optimized design for today’s higher output big block engines
- Idle to 5,500 RPM band
- Low rise dual plane design delivering friendly power and torque across the usable RPM range
- Universal dual pattern carb flange accepts spread bore (Quadrajets) and square bore carbs
- Permanent mold 319 aluminum construction is precision CNC machined providing lighter castings with better surface finishes
- Oval Port Dimensions: 1.775″ High x 1.600″ Wide
- Height: Front 4.25″, Rear 5.42″
- Runner geometry optimized using Computational Fluid Dynamics software for even fuel & air distribution
Application Summary:
| Year | Make/Model |
|---|---|
| 1963 | Chevrolet Bel Air |
| 1965-1975 | Chevrolet Bel Air |
| 1973-1974 | Chevrolet Blazer |
| 1975-1979 | Chevrolet C10 |
| 1968-1979 | Chevrolet C10 Suburban |
| 1975-1979 | Chevrolet C20 |
| 1968-1979 | Chevrolet C20 Suburban |
| 1975-1979 | Chevrolet C30 |
| 1967-1972 | Chevrolet Camaro |
| 1966-1976 | Chevrolet Caprice |
| 1970-1973 | Chevrolet Chevelle |
| 1965-1974 | Chevrolet Corvette |
| 1966-1975 | Chevrolet El Camino |
| 1963 | Chevrolet Impala |
| 1965-1976 | Chevrolet Impala |
| 1976 | Chevrolet K10 |
| 1979 | Chevrolet K10 |
| 1968-1974 | Chevrolet K10 Suburban |
| 1976-1978 | Chevrolet K20 |
| 1968-1974 | Chevrolet K20 Suburban |
| 1977 | Chevrolet K30 |
| 1976-1978 | Chevrolet K5 Blazer |
| 1970-1975 | Chevrolet Monte Carlo |
| 1969-1972 | Chevrolet Nova |
| 1975-1978 | GMC C15 |
| 1975-1978 | GMC C15 Suburban |
| 1979 | GMC C1500 |
| 1979 | GMC C1500 Suburban |
| 1975-1978 | GMC C25 |
| 1975-1978 | GMC C25 Suburban |
| 1979 | GMC C2500 |
| 1979 | GMC C2500 Suburban |
| 1975-1978 | GMC C35 |
| 1979 | GMC C3500 |
| 1973-1974 | GMC Jimmy |
| 1976 | GMC Jimmy |
| 1976 | GMC K15 |
| 1976-1978 | GMC K25 |
| 1976-1977 | GMC K25 Suburban |
| 1979 | GMC K3500 |
| 1971-1975 | GMC Sprint |
| Attributes | |
| ASIN | B002JITJR6 |
| Barrel | Four |
| Barrels | 4, 4 |
| Basic Operating RPM Range | Idle – 5500 |
| Brand | Weiand, Weiand |
| Carburetor Flange | 4150 Square Bore |
| Category | Air and Fuel Delivery, Intake Manifolds |
| Category Filter | Intake Manifolds |
| Clearance Category | Intake Manifolds |
| CNC Ported | No |
| Color | Natural, Natural |
| Construction | Cast, Cast |
| Country of Origin (Primary) | CN |
| Cylinder Head Type | Oval Port- Standard |
| Deck Height | 9.8 |
| EGR Port | No |
| Emission | N/A |
| Emission Code | 3, 3, Off Road |
| Engine | Chevy Big Block V8, Chevy Big Block V8 |
| Engine Make/Size | Chevy Big Block V8 |
| Finish | Satin |
| Flange Style | 4150 Square Bore |
| Fuel Injectors Included | No |
| Fuel System Type | Carb, Carb |
| Gasket Or Seal Included | No |
| Grade Type | Performance |
| Harmonized Tariff Code (Schedule B) | 8409915085 |
| Hazardous Material Code | N |
| Life Cycle Status Code | Available to Order |
| Manifold Type | Low Rise, Low Rise |
| Material | Aluminum |
| NAFTA Preference Criterion Code | B |
| Number Of Carbs | One |
| Part Type | Engine Intake Manifold, Engine Intake Manifold |
| Plenum Finish | Satin, Cast |
| Position | Lower |
| Product Type | Intake Manifold, Intake Manifold |
| RPM Power Band | Idle-5500 |
| RPM Range | Idle-5500 |
| Sale Category | Air and Fuel Delivery |
| SDR Required Flag | N |
| Single Or Dual Plane Type | Dual |
| Sub Category | Cylinder Block Components, Cylinder Block Components |
| Throttle Body Gasket Included | No |
| Usage | Street/Strip |
| Vacuum Ports | Yes |
| Warning | California Proposition 65 |
| Warranty | Limited 90 Day, Manufacturer’s Limited 90 Day Warranty |
| GTIN | 00090127661697 |
