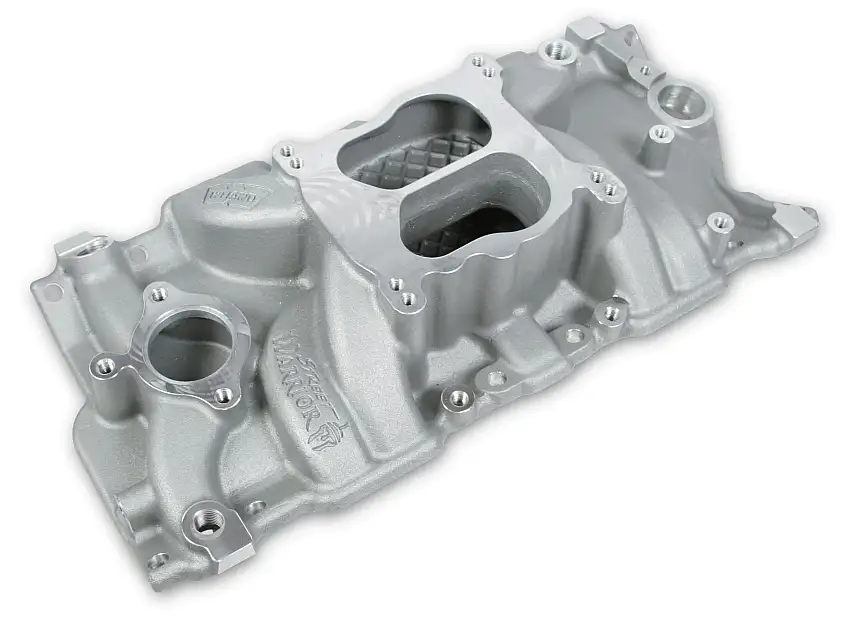

Street Warrior™ Intake Manifold 283-400ci, 1987-96 with iron head SBC Gen IDon’t settle for weak performance. The all new SB Chevy Street Warrior delivers brutal low-end torque and killer horsepower throughout useable RPM range! The battleground has changed in the performance world. Most of the intakes on the market were developed 20+ years ago when typical engines were 283-350 cubic inches. Not so anymore. With the popularity of larger stroker engines and more efficient cylinder head and cam designs came the need for intake manifolds to support these combinations. Designed with Computational Fluid Dynamics software, the Street Warrior intake rises to the challenge and delivers the performance to conquer the competition! Want maximum horsepower and torque from today’s engines? Choose Street Warrior!
- Universal dual pattern carb flange accepts spread bore (Quadrajets) and square bore carbs
- Front Height= 3.50″ Rear Height= 4.50″
- All new, optimized design for today’s higher output small block engines
- Sand cast aluminum construction precision CNC machined delivering highest value manifolds on the market & more power for your dollar
- Runner geometry optimized using Computational Fluid Dynamics software for even fuel & air distribution
- Idle to 5,500 RPM band
- Low rise dual plane design delivering street friendly power and torque across the useable RPM range
Information:
Designed specifically for 1987-96 with iron head Small Block Chevy Gen I engine applications
Application Summary:
| Year | Make/Model |
|---|---|
| 1991-1992 | Buick Commercial Chassis |
| 1991-1993 | Buick Roadmaster |
| 1990-1992 | Cadillac Brougham |
| 1992-1993 | Cadillac Commercial Chassis |
| 1993 | Cadillac Fleetwood |
| 1987-1992 | Chevrolet Camaro |
| 1989-1993 | Chevrolet Caprice |
| 1987-1991 | Chevrolet Corvette |
| 1991-1992 | Oldsmobile Custom Cruiser |
| 1987-1992 | Pontiac Firebird |
| Attributes | |
| ASIN | B002JIVN5C |
| Barrel | 4 |
| Basic Operating RPM Range | Idle – 5500 |
| Brand | Weiand, Weiand |
| Carburetor Flange | 4150 |
| Category | Air and Fuel Delivery, Intake Manifolds |
| Category Filter | Intake Manifolds |
| Clearance Category | Intake Manifolds |
| CNC Ported | No |
| Color | Natural, Natural |
| Construction | Cast, Cast |
| Country of Origin (Primary) | CN |
| Cylinder Head Type | Rectangular Port |
| Deck Height | 9.025 |
| EGR Port | No |
| Emission | N/A |
| Emission Code | 3, 3, Off Road |
| Engine | Chevy Small Block V8, Chevrolet Small Block Gen I |
| Engine Make/Size | Chevy Small Block V8 |
| Finish | Satin |
| Flange Style | 4150 |
| Front Height | 3.500 in., 3.50 inch |
| Front Maximum Height | 3.5, 3.5 |
| Fuel Injectors Included | No |
| Fuel System Type | Carb, Carb |
| Gasket Or Seal Included | No |
| Grade Type | Performance |
| Harmonized Tariff Code (Schedule B) | 8409915085 |
| Hazardous Material Code | N |
| Life Cycle Status Code | Available to Order |
| Manifold Type | Low Rise, Low Rise |
| Material | Aluminum |
| NAFTA Preference Criterion Code | B |
| Number Of Carbs | None; For Fuel Injection |
| Part Type | Engine Intake Manifold, Engine Intake Manifold |
| Plenum Finish | Satin, Cast |
| Position | Upper |
| Product Type | Intake Manifold, Intake Manifold |
| Rear Height | 4.500 in., 4.50 inch |
| Rear Maximum Height | 4.5, 4.5 |
| RPM Power Band | Idle-5500 |
| RPM Range | Idle-5500 |
| Sale Category | Air and Fuel Delivery |
| SDR Required Flag | N |
| Single Or Dual Plane Type | Dual |
| Sub Category | Cylinder Block Components, Cylinder Block Components |
| Throttle Body Gasket Included | No |
| Usage | Street/Strip |
| Vacuum Ports | Yes |
| Warning | California Proposition 65 |
| Warranty | Limited 90 Day, Manufacturer’s Limited 90 Day Warranty |
| GTIN | 00090127661765 |
