Description

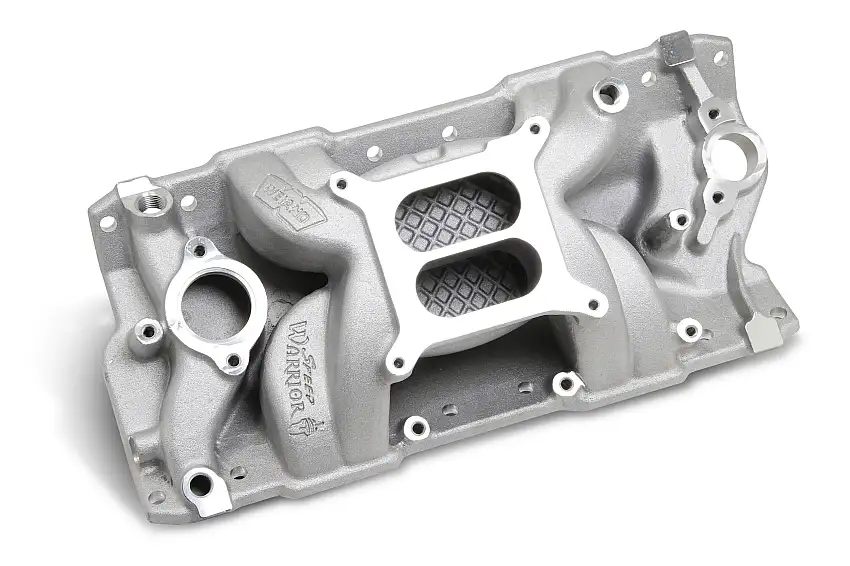

Speed Warrior™ Intake Manifold non/EGR 262ci-400ci, 1955-1986 Cylinder HeadsSpeed Warrior™ Intake Manifold non/EGR 262ci-400ci, 1955-1986 Cylinder Heads
- Precision CNC machining
- Permanent Mold Casting
- Height: Front 4.19″, Rear 5.27″
- Isolated Runners To Reduce Intake Charge Heating And Promote Airflow Between The Hot Engine And The Intake Plenum
- Power band: 1500-6700 RPM
- Square Bore Carburetor Flange
- Port Size: 1.92” height, 1.16″ width
- High Rise/Dual Plane Design
Information:
Utilizes late model alternator an A/C bracket mounting provisions. Has additional vacuum tap off of runner. Recommended intake manifold gasket – Mr Gasket #’s 5821 or 101G
Application Summary:
| Year | Make/Model |
|---|---|
| 1977-1980 | Buick Century |
| 1978 | Buick LeSabre |
| 1977-1980 | Buick Regal |
| 1977-1979 | Buick Skylark |
| 1956-1975 | Chevrolet Bel Air |
| 1958-1972 | Chevrolet Biscayne |
| 1969-1974 | Chevrolet Blazer |
| 1987-1994 | Chevrolet Blazer |
| 1969-1972 | Chevrolet Brookwood |
| 1975-1986 | Chevrolet C10 |
| 1961-1974 | Chevrolet C10 Pickup |
| 1968-1980 | Chevrolet C10 Suburban |
| 1982-1986 | Chevrolet C10 Suburban |
| 1988-1995 | Chevrolet C1500 |
| 1992-1995 | Chevrolet C1500 Suburban |
| 1975-1986 | Chevrolet C20 |
| 1961-1974 | Chevrolet C20 Pickup |
| 1968-1980 | Chevrolet C20 Suburban |
| 1982-1986 | Chevrolet C20 Suburban |
| 1988-1995 | Chevrolet C2500 |
| 1992-1995 | Chevrolet C2500 Suburban |
| 1975-1986 | Chevrolet C30 |
| 1961-1974 | Chevrolet C30 Pickup |
| 1988-1995 | Chevrolet C3500 |
| 1967-1992 | Chevrolet Camaro |
| 1966-1993 | Chevrolet Caprice |
| 1964-1973 | Chevrolet Chevelle |
| 1963-1968 | Chevrolet Chevy II |
| 1956-1972 | Chevrolet Corvette |
| 1974-1982 | Chevrolet Corvette |
| 1984-1991 | Chevrolet Corvette |
| 1958 | Chevrolet Del Ray |
| 1959-1960 | Chevrolet El Camino |
| 1964-1980 | Chevrolet El Camino |
| 1982-1987 | Chevrolet El Camino |
| 1975-1995 | Chevrolet G10 |
| 1968-1974 | Chevrolet G10 Van |
| 1975-1995 | Chevrolet G20 |
| 1968-1974 | Chevrolet G20 Van |
| 1975-1980 | Chevrolet G30 |
| 1982-1996 | Chevrolet G30 |
| 1970-1974 | Chevrolet G30 Van |
| 1959-1985 | Chevrolet Impala |
| 1975-1986 | Chevrolet K10 |
| 1961-1974 | Chevrolet K10 Pickup |
| 1968-1980 | Chevrolet K10 Suburban |
| 1982-1986 | Chevrolet K10 Suburban |
| 1988-1995 | Chevrolet K1500 |
| 1992-1995 | Chevrolet K1500 Suburban |
| 1975-1986 | Chevrolet K20 |
| 1961-1974 | Chevrolet K20 Pickup |
| 1968-1980 | Chevrolet K20 Suburban |
| 1982-1986 | Chevrolet K20 Suburban |
| 1988-1995 | Chevrolet K2500 |
| 1992-1995 | Chevrolet K2500 Suburban |
| 1977-1986 | Chevrolet K30 |
| 1968-1974 | Chevrolet K30 Pickup |
| 1988-1995 | Chevrolet K3500 |
| 1975-1980 | Chevrolet K5 Blazer |
| 1982-1986 | Chevrolet K5 Blazer |
| 1969-1972 | Chevrolet Kingswood |
| 1973-1976 | Chevrolet Laguna |
| 1964-1967 | Chevrolet Malibu |
| 1973-1983 | Chevrolet Malibu |
| 1970-1988 | Chevrolet Monte Carlo |
| 1975-1979 | Chevrolet Monza |
| 1969-1979 | Chevrolet Nova |
| Attributes | |
| ASIN | B000LU8PLK |
| Basic Operating RPM Range | 1500-6700 |
| Brand | Weiand, Weiand |
| Carburetor Flange | 4150 Square Bore |
| Category | Air and Fuel Delivery, Intake Manifolds |
| Category Filter | Intake Manifolds |
| Clearance Category | Intake Manifolds |
| CNC Ported | No |
| Color | Natural, Natural |
| Construction | Cast, Cast |
| Country of Origin (Primary) | CN |
| Cylinder Head Type | Standard |
| Deck Height | 9.025 |
| EGR Port | No |
| Emission | Without EGR |
| Emission Code | 3, 3, Off Road |
| Engine | Chevy Small Block V8, Chevrolet Small Block Gen I |
| Engine Make/Size | Chevy Small Block V8 |
| Finish | Satin |
| Flange Style | 4150 Square Bore |
| Front Height | 4.190 in., 4.19 inch |
| Front Maximum Height | 4.19, 4.19 |
| Fuel Injectors Included | No |
| Fuel System Type | Carb, Carb |
| Gasket Or Seal Included | No |
| Grade Type | Performance |
| Harmonized Tariff Code (Schedule B) | 8409915085 |
| Hazardous Material Code | N |
| Life Cycle Status Code | Available to Order |
| Manifold Type | High Rise, High Rise |
| Material | Aluminum |
| NAFTA Preference Criterion Code | B |
| Number Of Carbs | One |
| Part Type | Engine Intake Manifold, Engine Intake Manifold |
| Plenum Finish | Satin, Cast |
| Position | Lower |
| Product Type | Intake Manifold, Intake Manifold |
| Rear Height | 5.270 in., 5.27 inch |
| Rear Maximum Height | 5.27, 5.27 |
| RPM Power Band | 1500-6700 |
| RPM Range | 1500-6700 |
| Sale Category | Air and Fuel Delivery |
| SDR Required Flag | N |
| Single Or Dual Plane Type | Dual |
| Sub Category | Cylinder Block Components, Cylinder Block Components |
| Throttle Body Gasket Included | No |
| Usage | Street/Strip |
| Vacuum Ports | Yes |
| Warning | California Proposition 65 |
| Warranty | Limited 90 Day, Manufacturer’s Limited 90 Day Warranty |
| GTIN | 00090127621813 |
