Description

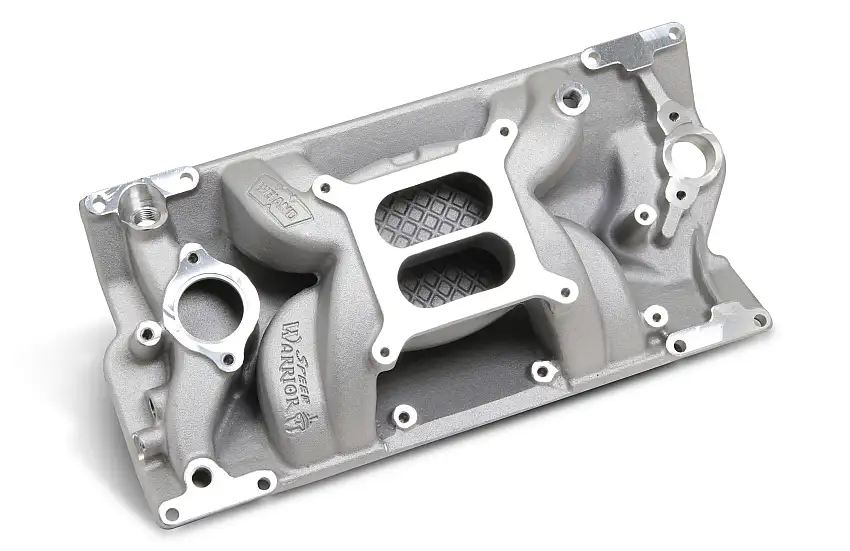

Speed Warrior™ Intake Manifold non/EGR 262ci-400ci, with Vortec (L31) Cylinder HeadsWeiand Speed Warrior Intake – Chevy Small Block V8
- Permanent Mold Casting
- Height: Front 4.19″, Rear 5.27″
- Square Bore Carburetor Flange
- Port Size: 2.05” height, 1.02″ width
- Precision CNC machining
- Isolated Runners To Reduce Intake Charge Heating And Promote Airflow Between The Hot Engine And The Intake Plenum
- High Rise/Dual Plane Design
- Power band: 1500-6700 RPM
Information:
Utilizes late model alternator an A/C bracket mounting provisions. Has additional vacuum tap off of runner. Recommended Fel-Pro gasket part # MS90131-2 (plastic body w/ o-ring seals) or MS98000T (permadry, high recommended)
Application Summary:
| Year | Make/Model |
|---|---|
| 1997-1999 | Chevrolet C1500 |
| 1999 | Chevrolet C1500 Suburban |
| 1996-2000 | Chevrolet C2500 |
| 1999 | Chevrolet C2500 Suburban |
| 1997-2000 | Chevrolet C3500 |
| 1996 | Chevrolet Express 1500 |
| 1998-2002 | Chevrolet Express 1500 |
| 1996 | Chevrolet Express 2500 |
| 1998-2002 | Chevrolet Express 2500 |
| 1996 | Chevrolet Express 3500 |
| 1998-2002 | Chevrolet Express 3500 |
| 1997-1999 | Chevrolet K1500 |
| 1999 | Chevrolet K1500 Suburban |
| 1996-2000 | Chevrolet K2500 |
| 1999 | Chevrolet K2500 Suburban |
| 1997-2000 | Chevrolet K3500 |
| 1999-2000 | Chevrolet Tahoe |
| 1998-1999 | GMC C1500 |
| 1996-2000 | GMC C2500 |
| 1997-2000 | GMC C3500 |
| 1997-1999 | GMC K1500 |
| 1996-2000 | GMC K2500 |
| 1997-2000 | GMC K3500 |
| Attributes | |
| ASIN | B000LUDH7W |
| Basic Operating RPM Range | 1500-6700 |
| Brand | Weiand, Weiand |
| Carburetor Flange | 4150 Square Bore |
| Category | Air and Fuel Delivery, Intake Manifolds |
| Category Filter | Intake Manifolds |
| Clearance Category | Intake Manifolds |
| CNC Ported | No |
| Color | Natural, Natural |
| Construction | Cast, Cast |
| Country of Origin (Primary) | CN |
| Cylinder Head Type | Standard |
| Deck Height | 9.025 |
| EGR Port | No |
| Emission | N/A, Without EGR |
| Emission Code | 3, 5 |
| Engine | Chevy Small Block V8, Chevrolet Small Block Gen I |
| Engine Make/Size | Chevy Small Block V8 |
| Finish | Satin |
| Flange Style | 4150 Square Bore |
| Front Height | 4.190 in., 4.19 inch |
| Front Maximum Height | 4.19, 4.19 |
| Fuel Injectors Included | No |
| Fuel System Type | Carb, Carb |
| Gasket Or Seal Included | No |
| Grade Type | Performance |
| Harmonized Tariff Code (Schedule B) | 8409915085 |
| Hazardous Material Code | N |
| Life Cycle Status Code | Available to Order |
| Manifold Type | High Rise, High Rise |
| Material | Aluminum |
| NAFTA Preference Criterion Code | B |
| Number Of Carbs | One |
| Part Type | Engine Intake Manifold, Engine Intake Manifold |
| Plenum Finish | Satin, Cast |
| Position | Upper |
| Product Type | Intake Manifold, Intake Manifold |
| Rear Height | 5.270 in., 5.27 inch |
| Rear Maximum Height | 5.27, 5.27 |
| RPM Power Band | 1500-6700 |
| RPM Range | 1500-6700 |
| Sale Category | Air and Fuel Delivery |
| SDR Required Flag | N |
| Single Or Dual Plane Type | Dual |
| Sub Category | Cylinder Block Components, Cylinder Block Components |
| Throttle Body Gasket Included | No |
| Usage | Street/Strip |
| Vacuum Ports | Yes |
| Warning | California Proposition 65 |
| Warranty | Limited 90 Day, Manufacturer’s Limited 90 Day Warranty |
| GTIN | 00090127621820 |
