Description

Lift Kit w/ Radius Arm Features:

• Heavy-duty while maximizing ground clearance
• Pro-ride dual rate coil springs for any terrain
• Heavy-duty tubular steel radius arms for maximizes ground clearance
• Easy bolt-on installation
• Vehicle-specific valving for better control
• Maximum performance for on or off-road

Upgrade To Get Smoother Drives

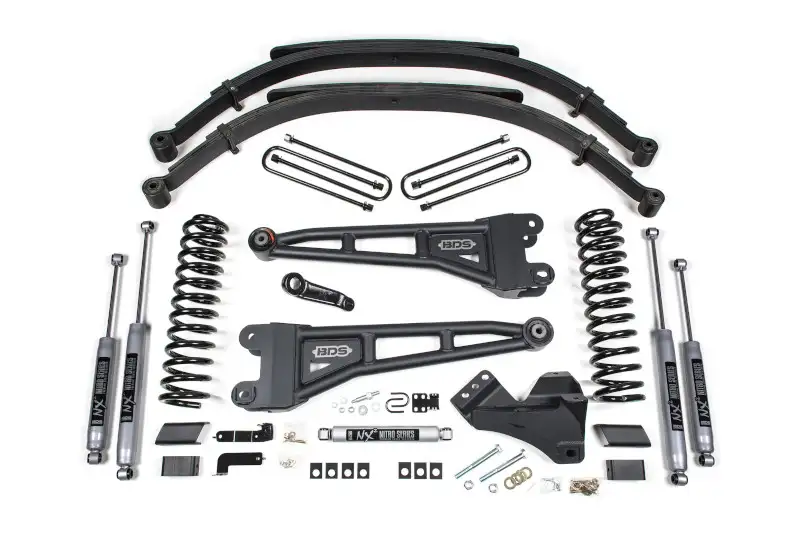

Improve the driving experience of your 2023-2026 Ford Super Duty diesel truck with the BDS Suspension 5-inch radius arm lift kit. This meticulously crafted kit is designed to enhance the truck’s stance, performance, and overall capability, providing everything needed to equip your vehicle for optimal performance and accommodate up to 37″ tires. The front section of the lift kit is equipped with diesel-specific Pro-Ride coil springs, heavy-duty replacement radius arms, a forged drop pitman arm, and a track bar bracket designed for steering correction. Additionally, it includes sway bar relocation, brake line brackets, and precision-tuned nitrogen-charged shocks to ensure a smooth and controlled ride.

Improves Your Rig’s Power and Performance

This kit utilizes a robust fabricated lift block, extended u-bolts, brake line brackets, and a corresponding set of either NX2 Nitro or FOX Performance shocks, offering a comprehensive upgrade to the rear suspension system. The kit includes a pair of full-length diesel-specific Pro-Ride coil springs, delivering the correct lift height and a predictable ride across diverse terrains. To optimize steering geometry after lifting, a forged drop pitman arm is employed to minimize the steering angle. Paired with a heavy-duty track bar drop bracket, it keeps the steering components in phase through suspension travel while recentering the front axle.

Tire and Wheel Note:

• 37 x 12.5 with 17 x 9 and 5 in. Backspace
• 37 x 12.5 with 18 x 9 and 5 in. Backspace
• 37 x 12.5 with 20 x 9 and 5 in. Backspace

Specs:

• Front Lift: Coil Spring
• Rear Lift: Leaf Spring
• Shocks Included: Yes
• Front Lift Height: 5 inch
• Rear Lift Height: 4 inch

NX2 Nitro Series Features:

• Nitrogen-charged
• Twin-tube design
• 10-stage velocity-sensitive valving
• Dual-welded ends for increased strength
• 1-3/8-inch high-flow piston
• Self-lubricating seals
• Silver powder coat finish

Vehicle Fitment: 2023, 2024, 2025, 2026 Ford F250/F350 SuperDuty 4WD

Note: This kit is not compatible with trucks equipped with radius arm mounted ride height sensors.

Note: Ford recommends the replacement of the pitman arm nut after each time it has been removed.

Note: Use a small pitman arm puller to remove the drag link joint and steering stabilizer taper.

Note: If your truck is equipped with a 2-piece rear driveshaft, a Carrier Bearing Drop Kit may be required: BDS123402.

Note: Larger tires on stock wheel are not recommended due to interference with brake line, radius arm and sway bar. Use recommended specs listed in wheel and tire note section.

Note: Due to the taller factory ride height, Tremor models will not net full advertised lift height. Final ride height will be the same as standard models.

Note: Installation requires a torque wrench capable of 406 ft-lbs.

Note: Trucks without top mounted overload springs will require (4) UBT4028.
